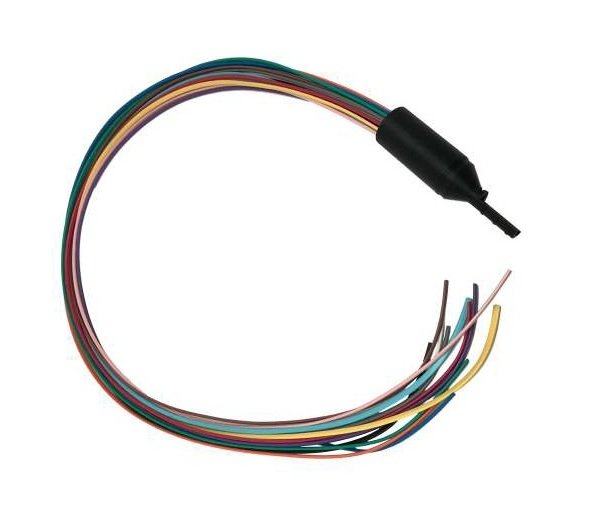

Opticonx UBK Series Breakout Kits are designed to provide a direct termination solution for high fiber count, rollable ribbon unitube cables and MTP/MPO connectors.Opticonx UBK Series Breakout Kits can also route 12 fiber bundle into individual color coded tubes via a protective housing. The color coded, protected fiber bundles can then be safely routed to splice trays or directly terminated with MTP/MPO connectors. The kits work with any manufacturer's unitube cable containing 12 fiber bundles.
Product Specifications
Applications
Direct termination of 12 fiber bundles with MTP/MPO connectorsFiber identification, management/ routing and protection for fusion and mechanical splicingDirect termination of the individual fibers from multi-fiber bundled cables when combined with SPKL Series Kits

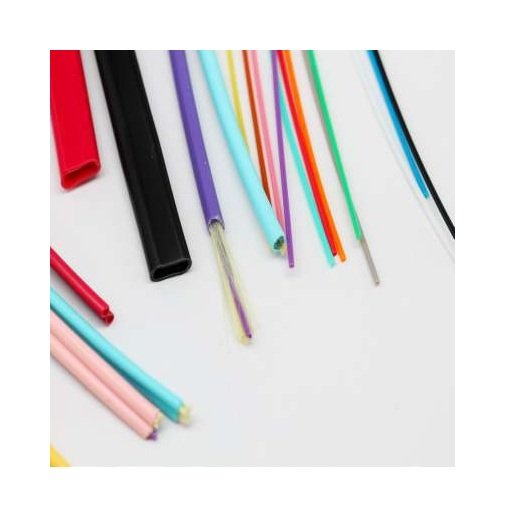

Breakoutfurcation Tubing For Fiber Optic Cable
Any Size, Material or Color900 μm, 2.0 mm, 3.0 mm, Ribbon and CustomPVC, Hytrel, PVDF, PP, LSZH, RoHS or choice of material 900 μm, 2.0 mm & 3.0 mm breakout tubing for 250 μm & 900 μm fiberMade to customer’s design specifications Your company name, phone number & website printed on tubingHarsh environment - any environment - tubing applications Rainbow of colors available on any tubing 12 fiber ribbon breakout tubingHigh & Low Temperature rated tubingKevlar reinforced tubing designsSingle wall, dual wall, multi wall tubingFactory direct pricingQuick turnaround from tubing design to delivery of tubing
Features And Benefits
No special tools requiredEasily identified color coded tubingFits any manufacturer's cableInstalls in minutesProtects and manages bare fiber

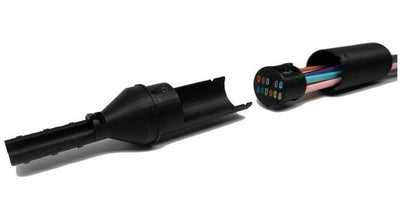

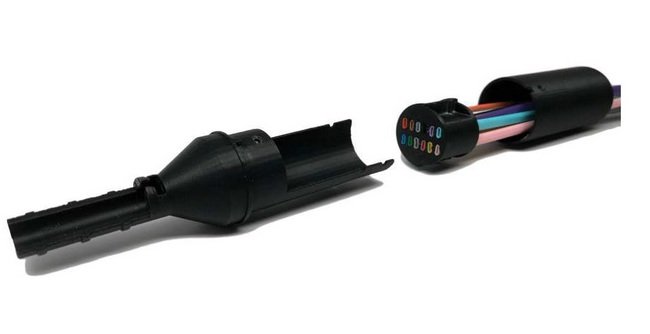

Kit Components
Cable body, breakout body, cable cover, screws and adhesive shrink tubingStandard tubing length is 36". Custom lengths available
Note
Made in the USA.
Other Kits Opticonx Bokl Series Breakout Kits
BOKL Series Breakout Kits are designed to provide a 2.0 mm or 3.0 mm direct termination solution for cable containing 250 µm buffered fiber.
Other Kits Opticonx Bokp Series Breakout Kits
BOKP Series Breakout Kits are designed to provide a 2.0 mm or 3.0 mm direct termination solution for cable containing 900 µm buffered fiber.
Other Kits Opticonx Splitter Kits
Splitter Kits are designed to provide a 900 μm direct termination solution for loose tube micro distribution and ribbon fiber cables.
Other Kits Opticonx Ubr Series Breakout Kits
UBR Series Breakout Kits are designed to provide a direct termination solution for high fiber count ribbon unitube cables and MTP/MPO terminations.
Specifications Body Length
114.33 mm | 4.5 in
Specifications Body Width
29.21 mm | 1.15 in
Specifications Cover Length
57.4 mm | 2.26 in
Specifications Cover Width
29.21 mm | 1.15 in
Specifications Number Of Fiber
72
Specifications Terminal Length
19.05 mm | 0.75 in
Specifications Terminal Width
23.88 mm | 0.94 in
