Opticonx XBR Series 4 x 144 Inch (in) Fiber Ribbon Cable Xtreme Density Breakout Kit

Opticonx XBR Series 4 x 144 Inch (in) Fiber Ribbon Cable Xtreme Density Breakout Kit

BRE-caa679

N/A

$49.99
$49.99
Sale

Initiate Order

Opticonx XBR Series 4 x 144 Inch (in) Fiber Ribbon Cable Xtreme Density Breakout Kit

Opticonx XBR Series 4 x 144 Inch (in) Fiber Ribbon Cable Xtreme Density Breakout Kit

$49.99

Quantity: 1

Claim Your Seller Account

Opticonx XBR Series 4 x 144 Inch (in) Fiber Ribbon Cable Xtreme Density Breakout Kit

Opticonx XBR Series 4 x 144 Inch (in) Fiber Ribbon Cable Xtreme Density Breakout Kit

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Opticonx XBR Series Xtreme Density Breakout Kits are designed to provide identification, protection, routing and management to xtreme density cable’s high fiber count "round/rollable/spider web" and "flat/oval" ribbons.Opticonx XBR Series Xtreme Density Breakout Kits route multiple 12 fiber bare ribbons in groups of 12 (144 fibers total) into individual, color coded tubes via protective housing. The color coded, protected, fiber bundles can then be routed to splice trays or even directly terminated with MTP/MPO connectors using Opticonx UBK or UBR Series Breakout Kits.

Product Specifications

Applications
Ribbon identification, protection, routing and management for mass fusion splicing.Designed specifically to work with Opticonx Xtreme Cassette ModuleDirect termination of 12 fiber ribbons with MTP/MPO Connectors using Opticonx UBK or UBR Series Breakout Kits
Features And Benefits
No special tools requiredEasily identified color coded tubingFits any manufacturer's cableInstalls in minutesProtects and manages bare fiber

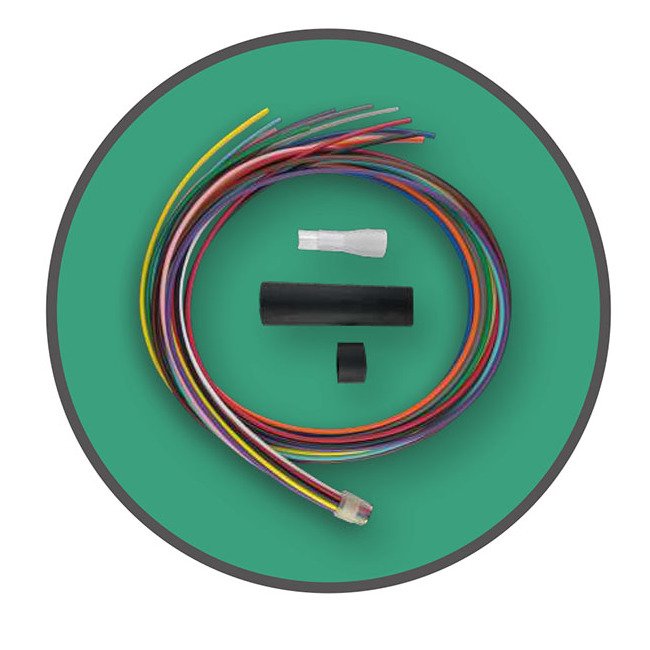

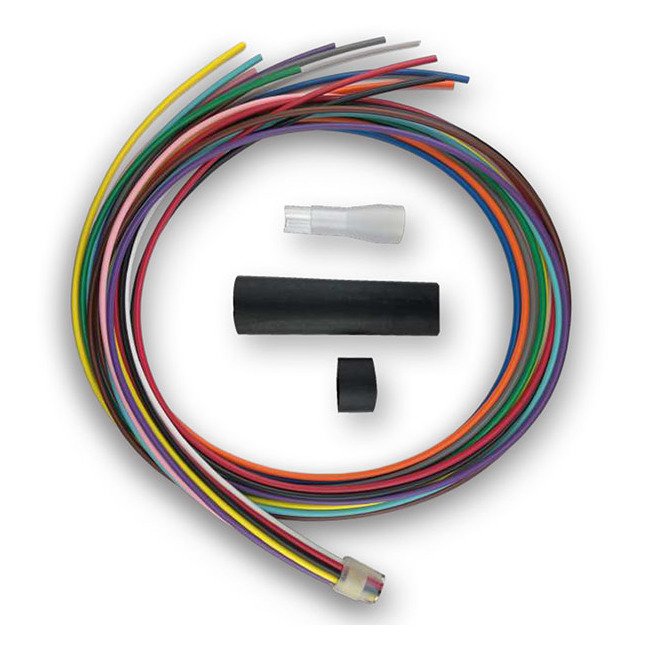

Kit Components
Cable body, breakout body, cable cover, screws and adhesive shrink tubingStandard tubing length is 2 metersCustom lengths availableCustom color coded tubing sequences available
Note
Made in the USA.
Specifications Body Depth
34.925 mm | 1.375 in
Specifications Body Length
114.33 mm | 4.5 in
Specifications Body Width
34.925 mm | 1.375 in
Specifications Fiber Ribbon Size
4 x 144 in
Specifications Terminal Depth
34.925 mm | 1.375 in
Specifications Terminal Length
38.1 mm | 1.5 in
Specifications Terminal Width
34.925 mm | 1.375 in

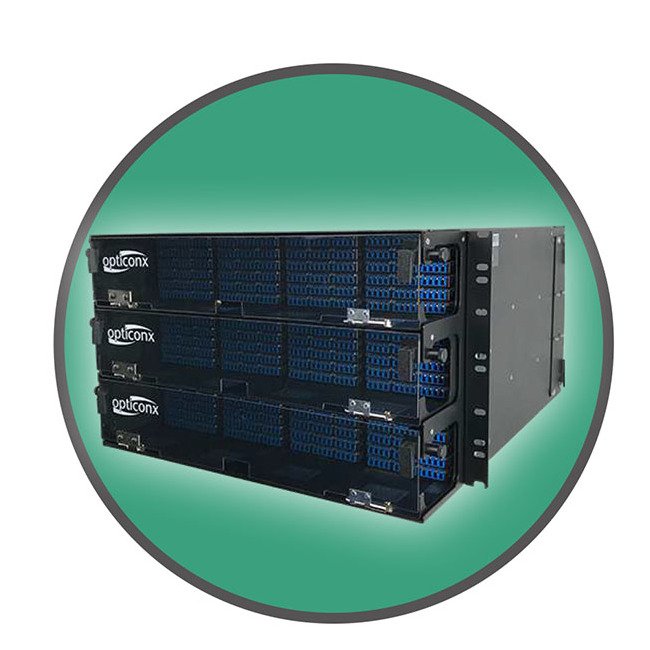

The Xd High Deployment Solution

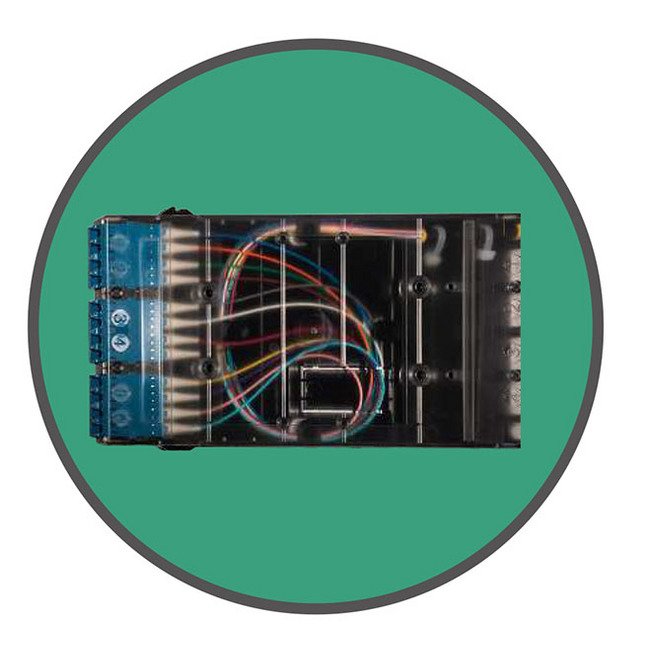

The XD patch panel is available in 2, 4, and 6U versions to accommodate any cable, connector or pigtail length for a completely custom solution. Super high density - up to 6,912 fibers in a rack.The foundation of the XD patch panel is the X+ cassette. It features cable management and is removable. Dust-shuttered VFL LC connectors eliminate the need for dust caps.The XBR breakout kit is the perfect complement to the XD patch panel for identification, protection, routing and management of 288 to 864 fiber cables.
