The OptiFlex is Kern's flagship large format laser system. The HyperDual motion package debuts on the OptiFlex and is setting the standard for large format laser cutting and engraving across the world.. This improved motion system features a rack and pinion design and powerful servo motors at each side of the laser table. Cut acceleration rates are up to three times faster with a 100% increase in top end vector speed. The X axis has also been upgraded with twin linear rails and a thicker steel reinforced belt.Whether you are a sign shop, metal fabricator or educational institute the OptiFlex laser system should be your machine of choice! Capable of cutting and marking metals such as stainless steel, aluminum, mild steel and thin brass; and non-metals such as fabrics, plastics/acrylics, wood, stone, glass, rubber, printed materials, etc This machine can also be equipped with our Camera Vision System, Rotary, and/or our pen marking system.

Product Specifications

Additional Features

Solid Steel ChassisThe OptiFlex is built around a precision-machined, heavy-duty steel weldment as the machine base. The one-piece weldment allows for the machine to arrive fully assembled, greatly reducing installation time.Honeycomb BedA durable aluminum table structure is inserted into the bed, maintaining a flat work surface. The honeycomb cells allow for a down draft table and also ducting smoke and debris into the bottom table chamber.Sheet Metal GuardsSheet metal panels are installed around the system which completely encase the bottom structure of the laser system. The side panels include a safety interlock which disables the laser if the panels are removed.Laser Safety GlassesTwo pairs of Laservision laser safety glasses are provided which each CO2 machine. This eyewear is rated OD 6+ at 9000-11000nm, offering protection from Kern's full range of CO2 laser systems.2.5" S-focus Lens AssemblyA great all-around processing head equipped with a high-quality optic. The assembly features an assist air which pushes air out of the nozzle, protecting the lens from smoke and debris.UL Electrical PanelA UL certified electrical panel is placed on each laser system which turns on and shuts down components of the laser system. CUL and CE approved machines are available by request.

Additional Information

A Powerful Tool Capable of High Production Cutting.

Dimensions Footprint Height

53 in | 1346 mm

Dimensions Footprint Length

181 in | 4597 mm

Dimensions Footprint Width

112 in | 2845 mm

Electrical Industry Standards For 3 Phase At 415 Volt V Voltage

European Conformity (CE)

Electrical Number Of Phase

1 | 3

Electrical Voltage At 1 Phase

230 V

Electrical Voltage At 3 Phase

230 V | 415 V | 480 V

Kcam Laser Software

KCAM® is a laser cutting and engraving software package developed by Kern's in-house software development team. Through years of research and customer feedback, KCAM® has developed into an industry-leading laser control software.KCAM® can be linked with popular design softwares such as CorelDRAW®, AutoCAD® and Adobe Illustrator®, allowing for hundreds of file types to be processed. A convenient user interface provides operators with complete control of the laser systems cutting and engraving parameters. Kern's customers have access to the latest KCAM® software upgrades from our website.Whether you’re cutting thick acrylic or a thin delicate textile, be ensured that KCAM® will provide you with the laser control required for quick and accurate results.File CompatibilityA macro within CorelDRAW® automatically sends your artwork to KCAM® with the click of a single button. KCAM® is also capable of directly opening common file types such as .dxf, .pdf, G-CODE and many more.Other popular CAD softwares such as AutoCAD LT®, Adobe Illustrator® and Solidworks® can be used to automatically load files into KCAM®.Gives You ControlCustomized Pierce Settings. The dwell time, laser power, frequency, focus point and air flow can be set independently from your normal cut settings. This feature ensures metals are cut clean with minimal to no dross.Air Control. Compressed shop air, oxygen or nitrogen can be hooked up to the laser system for optimal processing results on a variety of laserable materials.Vector Path Speed Control. KCAM® mimics a race car by slowing the cutting speed into sharp corners and accelerating out of them. The result is smooth, consistent cutting with the tap of your mouse.Saves You TimeCut Optimizer. Decrease your programming time by letting KCAM® automatically determine the fastest cut order for your most complicated designs.Time Estimator. Provide accurate pricing to your customers by knowing the amount of laser processing time before the product even makes it to the laser bed.Tool Offset. A simple inside/outside offset can be set to compensate for the laser beam kerf. This results in precisely sized parts without modification of your original part drawings.More KCAM® FeaturesBottom-Up & Top-Down EngravingVector Path Speed ControlSoft Home PositioningPart ArrayingAutomation PausesVision Registration SystemVariable Extents EngravingLead-In Speed ControlLine Color SortingPhotoGRAV CompatibleAnti-Banding Engraving ModeHistory LogNine Vector Cutting ColorsLaser Printer DriverTime EstimatorPower Density Control for CornersMultiple Modulation ModesSystem Usage Log

Materials Cut Material

Materials Mark Material

Specifications Certification

Underwriters Laboratories (UL)

Specifications Laser Classification

Class 4 Carbon Dioxide (CO2) Laser

Specifications Laser Wattage

100 to 650 W

Specifications Optional Packages

Specifications Origin

Made in USA

Specifications Part Clearance

3 in | 76.2 mm

Specifications Positioning Accuracy

0.002 in/ft | 0.1670 mm/m

Specifications Repeatability

0.0005 in/ft | 0.0417 mm/m

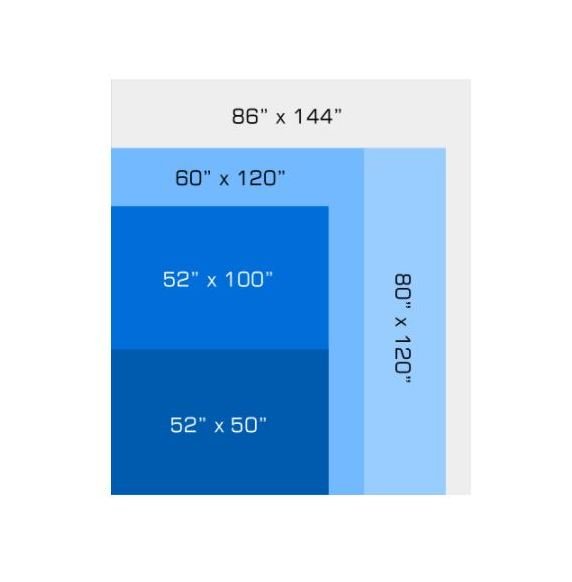

Specifications Work Area

86 x 144 in | 2184 x 3657 mm

Standard Features

Super Pulsed CO2 Laser100-650 watt CO2 lasers with super pulse technology, developed by kern Technologies, excels in cutting dense and highly reflective materials.Closed-loop ChillerA closed-loop chilling unit properly cools the laser source, ensuring a long laser lifetime and consistent cutting and engraving results.Vacuum & Fume ExhaustA blower package will remove fumes and small debris created during laser processing. An integrated downdraft table holds material flat on the table.Computer PackageA high-performance computer and monitor is included with each system. An adjustable monitor arm is installed at the front corner of the machine.Software PackageKCAM® Laser Software and CorelDRAW Graphics Suite are linked together allowing over 100 file types to be used, including .DXF, .PDF and G-CODE.Safety FeaturesCDRH laser machinery compliance is ensured with emergency stop buttons, safety labeling, interlocked access points and a 5 second delay safety key switch.Hyperdual MotionKern's next generation HyperDual motion package features a rack and pinion design driven by powerful servo motors at each side of the table.Training ProgramA 2 day training course at Kern's factory is included with each system. Kern's knowledgeable staff will cover safety, maintenance, operation and applications.
