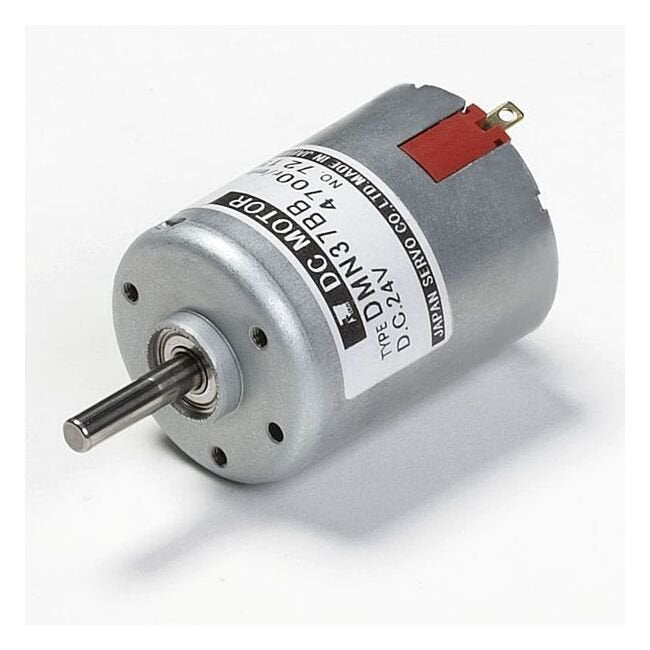

Optimized DMN37 Series DC Brush Motors
Optimized DMN37 Series DC Brush Motors
SKU:PER-c0b245
Highly durable DMN37 DC Brush Motors with optimized design for longevity and performance. Low noise, high output, and a variety of gear options to suit different requirements.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Optimized DMN37 Series DC Brush Motors
$99.99
Quantity: 1
Claim Your Seller Account
Optimized DMN37 Series DC Brush Motors
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 Series DC Brush Motors are engineered for durability and performance, designed to withstand over 1 million cycles of intermittent operation with optimized brush design. With a continuous operating life of 3000 hours, these motors offer high heat dissipation and resistance for increased output. Featuring a robust construction with large diameter output shaft and ball bearings, they provide high radial load capacity. Enjoy low noise operation and improved insulation thanks to the new resin brush holders. Choose from a wide selection of gear heads and reduction ratios to meet diverse needs, with options for magnetic revolution sensors and noise filters available.
Product Specifications
Additional Information 0
Connection Diagram | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Current No Load
0.14 A
Specifications Current Rating
600 mA | 0.60 A
Specifications Diameter
1.102 in | 28 mm
Specifications L1
58.2 mm | 2.291 in
Specifications L2
52.5 mm | 2.067 in
Specifications Note
Intermittent ratings are given for DMN37JB. (DUTY50%)
Specifications Product Type
DC Brush Motor
Specifications Rated Output
9.2 W
Specifications Rated Speed
3600 r/min
Specifications Rated Torque
24.5 mN·m | 3.48 oz·in
Specifications Series
DMN37
Specifications Speed No Load
4300 r/min
Specifications Stall Torque
160 mN·m | 23.61 oz·in
Specifications Voltage Dc
24 V
Specifications Weight
210 g | 0.46 lb
Torque Curve 0
