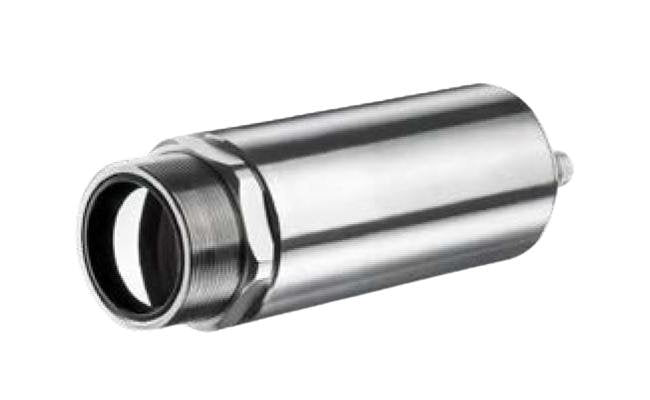

Optris 390:1 Optical Resolution Infrared Camera
Optris 390:1 Optical Resolution Infrared Camera
SKU:COM-a61270
High-precision infrared camera for industrial thermal imaging in harsh environments. Offers 320 x 240 pixel resolution and temperature measurement from 475 to 1700 ºC (887 to 3092 ºF).
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Optris 390:1 Optical Resolution Infrared Camera
$2,899.99
Quantity: 1
Claim Your Seller Account
Optris 390:1 Optical Resolution Infrared Camera
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris 390:1 Optical Resolution Infrared Camera from the Compact Line Xi series is designed for precision thermal imaging in harsh industrial environments. With a detector featuring Focal Plane Array technology and an uncooled pitch detector of 12 µm, this camera offers an optical resolution of 320 x 240 pixels and a spectral range of 3.9 µm. It can measure temperatures ranging from 475 to 1700 ºC (887 to 3092 ºF) with high accuracy of ±2%. The camera provides various interfaces for connectivity, including Ethernet and USB, and comes with different fields of view optics for versatile applications such as component inspection, fire protection, and injection molding.
Product Specifications
Specifications Accuracy
±2 %
Specifications Ambient Temperature Tamb
0 to 50 ºC | 32 to 122 ºF
Specifications Applications
Component Inspection of Circuit Boards | Infrared Technology for Fire Protection | Injection Molding | Workpiece Control During Drop Forging
Specifications Detector
Focal Plane Array (FPA)
Specifications Diameter
36 x 100 mm | 1.42 x 3.9 in
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Direct In Outputsstandard Process Interface Pif
1x analog output (0/4-20 mA) | 1x input (analog or digital); electrically isolated
Specifications Fields Of View Fov Optics
11º x 8º (f = 20 mm [0.79 in]) | 17º x 13º (f = 13 mm [0.51 in]) | 29º x 21º (f = 8 mm [0.31 in]) | 41º x 30º (f = 6 mm [0.24 in])
Specifications Focus
Manual Motor Focus
Specifications Frame Rate
Autonomous Operation: 320 x 240 pixels at 1.7 Hz | Ethernet: 320 x 240 pixels at 30 Hz | Universal Serial Bus (USB): 320 x 240 pixels at 5 Hz
Specifications Industrial Process Interface Pif
3x alarm outputs (relais) | 3x analog outputs (0/4â20 mA or 0â10 V) | 3x inputs (analog or digital) | fail-safe (LED and relay) stackable up to 3 PIFs; electrically isolated
Specifications Optical Resolution
320 x 240 px
Specifications Optical Resolution Ds
550:1
Specifications Optical Resolution Ds Optics
11 º
Specifications Personal Computers Pc Interfaces
Fast Ethernet | Recommended Standard (RS485) | Universal Serial Bus (USB 2.0)
Specifications Power Supply
Power Over Ethernet (PoE) | Universal Serial Bus (USB)
Specifications Spectral Range
3.9 µm
Specifications Standard Universal Serial Bus Usb Cable Length
1 m
Specifications Temperature Ranges
475 to 1700 ºC | 887 to 3092 ºF
Specifications Thermal Sensitivity Netd At 600 Degree Celsius C
1 K
Specifications Thread
M30 x 1
Specifications Uncooled Pitch Detector
12 µm
Specifications Universal Serial Bus Usb Cable Length
3 m | 5 m | 10 m | 20 m | 9.8 ft | 16.4 ft | 32.8 ft | 65.6 ft
Specifications Weight Depending On Lens
216 to 220 g | 7.62 to 7.76 oz
