Optris Compact 15:1 Infrared Thermometer
Optris Compact 15:1 Infrared Thermometer
SKU:COM-500b83
Get accurate temperature readings in cramped spaces with the Optris Compact 15:1 Infrared Thermometer, designed for precision and efficiency.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Optris Compact 15:1 Infrared Thermometer
$349.99
Quantity: 1
Claim Your Seller Account
Optris Compact 15:1 Infrared Thermometer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

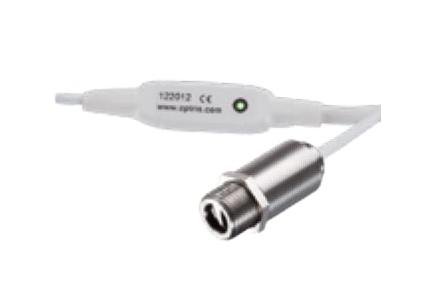

The Optris Compact Series 15:1 Optical Resolution Infrared Thermometer is a small yet powerful device ideal for use in confined and high-temperature environments. Featuring a single-piece sensor with electronics in the cable and a smart LED display, this thermometer offers precise temperature measurements with an optical resolution of 15:1. With a wide temperature range of -50 to 1030°C (-58 to 1886°F), a quick response time of 150 ms, and high accuracy of ±1°C or ±1%, this tool is perfect for both consumer and institutional buyers who demand reliability and efficiency. Additionally, a range of mechanical and optical accessories are available for enhanced functionality and versatility.
Product Specifications
Accessories Air Purges And Protective Housings
ACCSAP - Air purge collar (for heads with optical resolutionââ¥10:1)ACCTAPMH - Air purge collar for Massive housing (D06)/CSmicro HS/CThot/CT P3/CT P7High mass housing of:Compact, brass (D06ACCTMHB)Anodized aluminum (D06ACCTMHA)Stainless steel (D06ACCTMHS)Stainless steel version with CF optics (D06ACCTMHSCF)Stainless steel version for HT CF optics (D06ACCTMHSCFHT)ACCTAPLCFHT - Air purge collar, laminar, with integrated CF lens (for 1M/ 2M/ 3M)ACCTAPL - Air purge collar, laminarACCTAP/ACCTAP2 (2:1 Optics) - Air purge for CT heads (not for heads with 32 mm length)
Accessories Combinations
ACCTAPL - Air purge collar, laminar + ACCTMG - Mounting fork = Device adjustable in two axesACCTFB2 - Mounting bracket for sensing head + Sighting tool + D08ACCTLST/ACCTOEMLST - OEM Laser-Sighting tool = Sensing head with Laser Sighting toolACCTFB - Mounting bracket for M12x1 sensing head + ACCTMB - Mounting bolt = ACCTAB - Device adjustable in two axesD06ACCTAPMH - Massive housing, stainless steel + ACCTAPMH - Air purge, stainless steel = Massive housing with air purge
Accessories Mechanical Accessories
ACCTFB/ACCTFBMH/ACCTFB2 - Mounting bracket, adjustable in one axis (M12x1 sensing head, massive housing, mounting of CT sensing head + Laser-Sighting tool)ACCTTAS - Tilt assembly for heads with opticalâresolutionââ¥10:1ACCTKF40B270/ACCTKF40GE - KF40 flange for CT1M, 2M, 3M with B270 window (up to 10-7 mbar)/KF40 flange for CTLT with Ge window (up to 10-7 mbar)ACCTRAIL - Rail mount adapter for CT electronicsACCTMB - Mounting bolt with thread M12x1ACCTMG - Mounting fork, adjustable in 2 axes, with thread M12x1
Accessories Optical Accessories
ACCTCF/ACCTPW - CF-lens or protective window (for LT) for M12x1 sensing headACCTCFHT / ACCTPWHT for 1M, 2M, 3MACCTCFE/ACCTPWE - CF-lens or protective window (for LT) with external thread for air purge or massive housingACCTCFHTE/ACCTPWHTE for 1M, 2M, 3MD08ACCTLST/ACCTOEMLST - Laser-Sighting tool (for CT )/OEM Laser-Sighting tool, 635 nm, rotation symmetrical, for connection to CT electronics, power supply via CT electronic box or batteryACCTRAM - Right angle mirror for measurements 90º to the sensor axisâforâsensingâheadsâwithâopticalâresolutionââ¥10:1ACCTPA + ACCTST20 20 (20 mm length)/ACCTST40 (40 mm length)/ACCTST88 (88 mm length) Pipe adapter with M12x1 internal thread + Sighting tube with M12x1 external thread
Specifications Accuracy
±1 ºC or ±1% | ±2 ºF or ±1%
Specifications Classificationspecial Features
Single-Piece Sensor with Electronics in Cable; Smart Light Emitting Diode (LED) Display
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Functional Number
1
Specifications Head Cable Shortening
Behind Electronics
Specifications Maximum Electronics Ambient Temperature Tamb
80 ºC | 176 ºF
Specifications Maximum Electronics Ambient Temperature Tamb Ma V
75 ºC | 167 ºF
Specifications Maximum Head Ambient Temperature Tamb
120 ºC | 248 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
15:1
Specifications Response Time At 90 Percent
150 ms
Specifications Sighting
Light Emitting Diode (LED) Aiming
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 04 I
0.03 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 10 M
0.8 mm
Specifications Smallest Spot Sf Optics
7 mm | 0.3 in
Specifications Spectral Range
8 to 14 µm
Specifications Standard Cable Length Options
0.5 + 0.5 m | Up to 9 m | 1.6 ft | Up to 29.5 ft
Specifications Temperature Ranges
-50 to 1030 ºC | -58 to 1886 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M12 x 1
