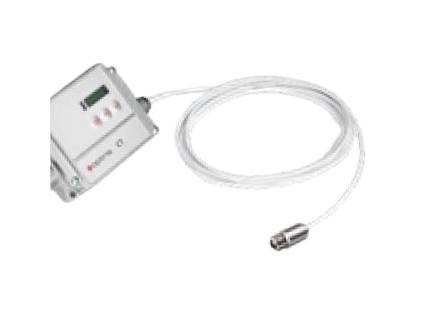

The Optris Compact Series 22:1 Infrared Thermometer is a versatile solution for precise temperature measurements in cramped or hot environments. Featuring a two-piece sensor design for low temperature metal measuring, this thermometer offers an optical resolution of 22:1, a spectral range of 2.3 µm, and temperature ranges from 50 to 400 ºC. With a rapid response time of 1 ms and high accuracy of ±(0.3% Tmeas +1 ºC), this thermometer ensures reliable temperature readings. Additionally, it comes with a range of accessories for enhanced functionality and adaptability in various applications.
Product Specifications
Accessories Air Purges And Protective Housings
ACCSAP - Air purge collar (for heads with optical resolutionââ¥10:1)ACCTAPMH - Air purge collar for Massive housing (D06)/CSmicro HS/CThot/CT P3/CT P7High mass housing of:Compact, brass (D06ACCTMHB)Anodized aluminum (D06ACCTMHA)Stainless steel (D06ACCTMHS)Stainless steel version with CF optics (D06ACCTMHSCF)Stainless steel version for HT CF optics (D06ACCTMHSCFHT)ACCTAPLCFHT - Air purge collar, laminar, with integrated CF lens (for 1M/ 2M/ 3M)ACCTAPL - Air purge collar, laminarACCTAP/ACCTAP2 (2:1 Optics) - Air purge for CT heads (not for heads with 32 mm length)
Accessories Combinations
ACCTAPL - Air purge collar, laminar + ACCTMG - Mounting fork = Device adjustable in two axesACCTFB2 - Mounting bracket for sensing head + Sighting tool + D08ACCTLST/ACCTOEMLST - OEM Laser-Sighting tool = Sensing head with Laser Sighting toolACCTFB - Mounting bracket for M12x1 sensing head + ACCTMB - Mounting bolt = ACCTAB - Device adjustable in two axesD06ACCTAPMH - Massive housing, stainless steel + ACCTAPMH - Air purge, stainless steel = Massive housing with air purge
Accessories Mechanical Accessories
ACCTFB/ACCTFBMH/ACCTFB2 - Mounting bracket, adjustable in one axis (M12x1 sensing head, massive housing, mounting of CT sensing head + Laser-Sighting tool)ACCTTAS - Tilt assembly for heads with opticalâresolutionââ¥10:1ACCTKF40B270/ACCTKF40GE - KF40 flange for CT1M, 2M, 3M with B270 window (up to 10-7 mbar)/KF40 flange for CTLT with Ge window (up to 10-7 mbar)ACCTRAIL - Rail mount adapter for CT electronicsACCTMB - Mounting bolt with thread M12x1ACCTMG - Mounting fork, adjustable in 2 axes, with thread M12x1
Accessories Optical Accessories
ACCTCF/ACCTPW - CF-lens or protective window (for LT) for M12x1 sensing headACCTCFHT / ACCTPWHT for 1M, 2M, 3MACCTCFE/ACCTPWE - CF-lens or protective window (for LT) with external thread for air purge or massive housingACCTCFHTE/ACCTPWHTE for 1M, 2M, 3MD08ACCTLST/ACCTOEMLST - Laser-Sighting tool (for CT )/OEM Laser-Sighting tool, 635 nm, rotation symmetrical, for connection to CT electronics, power supply via CT electronic box or batteryACCTRAM - Right angle mirror for measurements 90º to the sensor axisâforâsensingâheadsâwithâopticalâresolutionââ¥10:1ACCTPA + ACCTST20 20 (20 mm length)/ACCTST40 (40 mm length)/ACCTST88 (88 mm length) Pipe adapter with M12x1 internal thread + Sighting tube with M12x1 external thread
Specifications Accuracy
±(0.3% Tmeas +1 ºC) | ±(0.3% Tmeas +2 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor for Low Temperature Measuring of Metal, Separate Electronic Box Including Display and Programming Keys
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
22:1
Specifications Response Time At 90 Percent
1 ms
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 110
3.4 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 43 I
0.13 in
Specifications Smallest Spot Sf Optics
7 mm | 0.3 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length Options
3 m | 9.8 ft
Specifications Temperature Ranges
50 to 400 ºC | 122 to 752 ºF
Specifications Temperature Resolution
0.25 K
Specifications Thread Sensing Head
M12 x 1
