Optris Compact Line Xi 390:1 Optical Resolution Infrared Camera
Optris Compact Line Xi 390:1 Optical Resolution Infrared Camera
SKU:COM-3d39cc
Enhance thermal imaging accuracy in industrial settings with the Optris Compact Line Xi 390:1 Optical Resolution Infrared Camera. Ideal for circuit board inspection, fire protection, and injection molding applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order

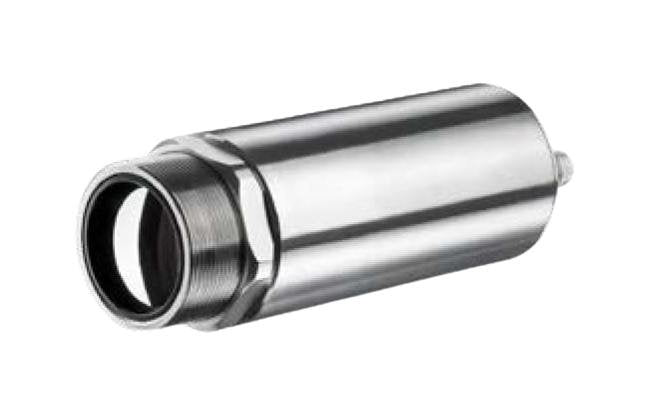

Optris Compact Line Xi 390:1 Optical Resolution Infrared Camera
$2,599.99
Quantity: 1
Claim Your Seller Account
Optris Compact Line Xi 390:1 Optical Resolution Infrared Camera
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris Compact Line Xi 390:1 Optical Resolution Infrared Camera is designed for efficient temperature measurement in harsh industrial environments. With an uncooled FPA detector and optical resolution of 382 x 288 px, it offers precise thermal imaging from -20 to 100 ºC. Equipped with manual motor focus and various interfaces, it ensures accurate data collection for applications like circuit board inspection, fire protection, and injection molding. This camera's robust design, along with optional accessories like the air purge unit and water-cooled housing, enhances its functionality in extreme conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Air Purge Unit
Part Number - ACXIAPL + ACXIAPLAB (Mounting Bracket)Features:The air purge attachment can be used in combination with the water cooled housing and protects the optics from contaminationUsed in rough and dusty areas to guarantee a reliable temperature measurement
Accessories Industrial Process Interface Pif For Xi Series
Part Number - ACPIPIFMACBxFeatures:Industrial process interface for Xi 400 with 3 analog / alarm outputs, 2 analog inputs, 1 digital input, 3 alarm relaysIndustrial process interface for Xi 80 with 3 analog-/ alarm outputs, 3 inputs (analog or digital), alarm relays500 V ACRMS isolation voltage between camera and processSeparate fail-safe relay outputXi hardware including all cable connections and PIX Connect software are permanently observed during operationNote - x = For different cable lengths
Accessories Outdoor Protective Housing For Xi Series
Part Number - ACXIOPH24Features:Environmental rating IP 66Additional air purge collar allows continuous operation in dusty and humid environmentsHeating element and built-in fan enable for a 24/7 operation from -40 ºC to 50 ºCInstallation of USB Server Gigabit 2.0 and industrial process interface possible for integration into control systems over large outdoor distances
Accessories Shutter
Part Number - ACXISCBxxFeatures:In addition Xi cameras can be equipped with a shutterThe shutter protects the optics from falling parts within a response time of 100 msNote - 11 = For different cable lengths
Accessories Universal Serial Bus Usb Server Gigabit 20 For Xi 40
Part Number - ACPIUSBSGBFeatures:Fully USB 2.0 compatible, Data rates: 1.5/12/480 mbps, USB transfer mode: IsochronousNetwork connection via Gigabit EthernetFull TCP/IP support incl. routing and DNSTwo independent USB portsSupply from PoE or external power supply with 24 - 48 V DCGalvanic isolation 500 VRMS (network connection)Remotely configurable via Web Based ManagementProven technology from Wiesemann & Theis
Accessories Water Cooled Housing
Part Number - ACXIWFeatures:The rugged water cooled housing allows the Xi infrared cameras to be employed in hot environments up to 250ºCRespective heat-resistant cables are also availableNote - Only water cooled housing
Additional Information Additional Information
The new microscope optics for the optris Xi 400 infrared camera allows reliable temperature measurement on tiny objects from 240 μm (MFOV). In combination with a suitable stand, this enables professional measurement of printed circuit boards and components in the electronics industry. The measuring distance between camera and object is variable between 90 and 110 mm. Due to the built-in motor focus, the camera can be easily mounted in the supplied PIX Connect software focus. For measuring even smaller objects we recommend the PI 640 microscope optics, smallest measuring spot: 28 μm (IFOV).
Specifications Accuracy
±2 ºC (±3.6 ºF) or ±2%, Whichever is Greater
Specifications Ambient Temperature Tamb
0 to 50 ºC | 32 to 122 ºF
Specifications Applications
Component Inspection of Circuit Boards | Infrared Technology for Fire Protection | Injection Molding | Workpiece Control During Drop Forging
Specifications Class
Ingress Protection (IP 67) (National Electrical Manufacturers Association (NEMA 4))
Specifications Detector
Focal Plane Array (FPA)
Specifications Diameter
36 x 100 mm | 1.41 x 3.94 in
Specifications Direct In Outputsstandard Process Interface Pif
1x 0-10 V Input | 1x 0-10 V Output | 1x Digital Input (Maximum 24 V)
Specifications Fields Of View Fov Optics
18º x 14º (f = 20 mm [0.79 in]) | 29º x 22º (f = 12.7 mm [0.50 in]) | 53º x 38º (f = 7.7 mm [0.30 in]) | 80º x 54º (f = 5.7 mm [0.22 in])
Specifications Focus
Manual Motor Focus
Specifications Frame Rate
27 Hz | 80 Hz
Specifications Industrial Process Interface Pif
1x Digital Input (Maximum 24 V) | 1x Fail-Safe Relay | 2 x 0-10 V Inputs | 3 x 0/4-20 mA Outputs | 3 x Relays (0-30 V/400 mA)
Specifications New Microscope Optics
18º x 14º (f = 20 mm [0.79 in]) | Smallest Measuring Spot: 90 μm [IFOV])
Specifications Optical Resolution
382 x 288 px
Specifications Optical Resolution Ds
390:1
Specifications Optical Resolution Ds Optics
18 º
Specifications Personal Computers Pc Interfaces
Optional Universal Serial Bus (USB) Gigabit Ethernet (zu GigE) Power Over Ethernet (PoE) | Universal Serial Bus (USB 2.0)
Specifications Power Supply
Via Universal Serial Bus (USB)
Specifications Shockvibration
International Electrotechnical Commission (IEC 60068-2)
Specifications Spectral Range
8 to 14 µm
Specifications Standard Universal Serial Bus Usb Cable Length
1 m
Specifications Temperature Ranges
-20 to 100 ºC | 0 to 250 ºC | -4 to 212 ºF | 32 to 482 ºF
Specifications Temperature Ranges Accuracy Effective Starting At
(20) 150 to 900 ºC | 302 to 1652 ºF
Specifications Thermal Sensitivity Netd
80 mK
Specifications Thread
M30 x 1
Specifications Uncooled Pitch Detector
17 µm
Specifications Universal Serial Bus Usb Cable Length
3 m | 5 m | 10 m | 20 m | 9.8 ft | 16.4 ft | 32.8 ft | 65.6 ft
Specifications Weight Depending On Lens
216 to 220 g | 7.62 to 7.76 oz
Standard Scope Of Supply Standard Scope Of Supply
Xi cameraUSB cable (1 m (3.3 ft))Cable for in-/outputs (1 m (3.3 ft)) with terminal blockMounting bracket with tripod thread, mounting nutSoftware package optris PIX ConnectQuick start guide
