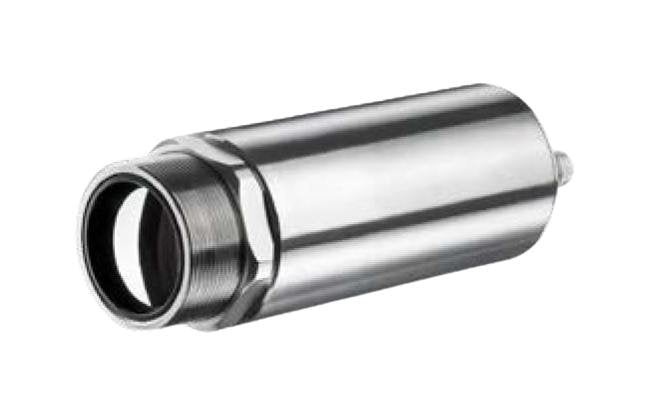

Optris Compact Line Xi Infrared Camera - High Optical Resolution
Optris Compact Line Xi Infrared Camera - High Optical Resolution
SKU:COM-807e34
Compact Line Xi Infrared Camera with 390:1 Optical Resolution for precise industrial temperature measurement. Ideal for harsh environments.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Optris Compact Line Xi Infrared Camera - High Optical Resolution
$2,499.99
Quantity: 1
Claim Your Seller Account
Optris Compact Line Xi Infrared Camera - High Optical Resolution
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris Compact Line Xi Infrared Camera offers exceptional optical resolution of 390:1, making it ideal for precise temperature measurement in harsh industrial environments. With an uncooled Focal Plane Array detector and a wide temperature range up to 900°C, this camera provides accurate thermal imaging in a compact and rugged design. Featuring autonomous operation and a spectral range of 8 to 14 µm, this camera is perfect for applications such as component inspection, fire protection, and injection molding.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
±2 ºC (3.6 ºF) or ±2 %, whichever is greater
Specifications Ambient Temperature Tamb
0 to 50 ºC | 32 to 122 ºF
Specifications Applications
Component Inspection of Circuit Boards | Infrared Technology for Fire Protection | Injection Molding | Workpiece Control During Drop Forging
Specifications Detector
Focal Plane Array (FPA)
Specifications Diameter
36 x 100 mm | 1.42 x 3.9 in
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Direct In Outputsstandard Process Interface Pif
1x analog output (0/4-20 mA) | 1x input (analog or digital); electrically isolated
Specifications Fields Of View Fov Optics
18º x 12º (f = 20 mm [0.79 in]) | 29º x 18º (f = 13 mm [0.51 in]) | 53º x 31º (f = 8 mm [0.31 in]) | 80º x 44º (f = 6 mm [0.24 in])
Specifications Focus
Manual Motor Focus
Specifications Frame Rate
Ethernet 25 Hz/Universal Serial Bus (USB) 4 Hz Autonomous operation: (without PC) 1.5 Hz
Specifications Industrial Process Interface Pif
3x alarm outputs (relais) | 3x analog outputs (0/4â20 mA or 0â10 V) | 3x inputs (analog or digital) | fail-safe (LED and relay) stackable up to 3 PIFs; electrically isolated
Specifications Optical Resolution
320 x 240 px
Specifications Optical Resolution Ds
390:1
Specifications Optical Resolution Ds Optics
18 º
Specifications Personal Computers Pc Interfaces
Fast Ethernet | Recommended Standard (RS485) | Universal Serial Bus (USB 2.0)
Specifications Power Supply
Power Over Ethernet (PoE) | Universal Serial Bus (USB)
Specifications Spectral Range
8 to 14 µm
Specifications Standard Universal Serial Bus Usb Cable Length
1 m
Specifications Temperature Ranges
-20 to 100 ºC | 0 to 250 ºC | -4 to 212 ºF | 32 to 482 ºF
Specifications Temperature Ranges Accuracy Effective Starting At
(20) 150 to 900 ºC | 302 to 1652 ºF
Specifications Thermal Sensitivity Netd
80 mK
Specifications Thread
M30 x 1
Specifications Uncooled Pitch Detector
17 µm
Specifications Universal Serial Bus Usb Cable Length
3 m | 5 m | 10 m | 20 m | 9.8 ft | 16.4 ft | 32.8 ft | 65.6 ft
Specifications Weight Depending On Lens
216 to 220 g | 7.62 to 7.76 oz
