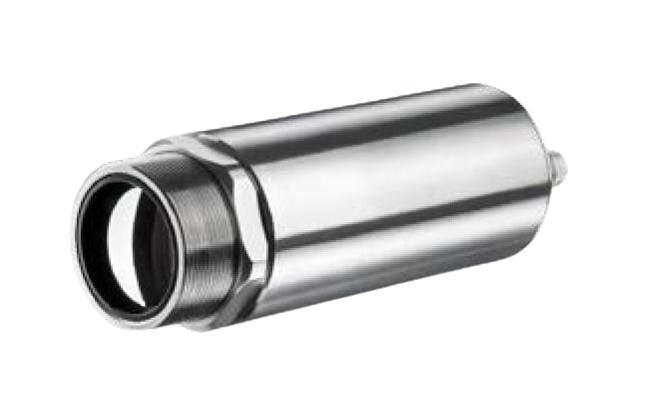

Optris Compact Line Xi Infrared Camera with 190:1 Optical Resolution
Optris Compact Line Xi Infrared Camera with 190:1 Optical Resolution
SKU:COM-765995
Enhanced Compact Line Xi IR camera for precise temperature measurement in harsh industrial settings. Offers high optical resolution (190:1) and versatile interfaces for seamless integration.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Optris Compact Line Xi Infrared Camera with 190:1 Optical Resolution
$1,899.99
Quantity: 1
Claim Your Seller Account
Optris Compact Line Xi Infrared Camera with 190:1 Optical Resolution
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris Compact Line Xi Infrared Camera with a high optical resolution of 190:1 is designed for reliable temperature measurement in harsh industrial environments. With features like a Focal Plane Array (FPA) detector, uncooled pitch detector of 34 µm, and an extended temperature range up to 900 ºC, this camera ensures accurate thermal imaging. It offers Ethernet, USB, and industrial process interfaces for seamless integration and precise component inspection, fire protection, and injection molding applications.
Product Specifications
Accessories Air Purge Unit
Part Number - ACXIAPL + ACXIAPLAB (Mounting Bracket)Features:The air purge attachment can be used in combination with the water cooled housing and protects the optics from contaminationUsed in rough and dusty areas to guarantee a reliable temperature measurement
Accessories Industrial Process Interface Pif For Xi Series
Part Number - ACXIPIFCBxFeatures:Industrial process interface for Xi 400 with 3 analog / alarm outputs, 2 analog inputs, 1 digital input, 3 alarm relaysIndustrial process interface for Xi 80 with 3 analog-/ alarm outputs, 3 inputs (analog or digital), alarm relays500 V ACRMS isolation voltage between camera and processSeparate fail-safe relay outputXi hardware including all cable connections and PIX Connect software are permanently observed during operationOption Xi 80: stackable up to 3 PIFsNote - x = For different cable lengths
Accessories Outdoor Protective Housing For Xi Series
Part Number - ACXIOPH24Features:Environmental rating IP 66Additional air purge collar allows continuous operation in dusty and humid environmentsHeating element and built-in fan enable for a 24/7 operation from -40 ºC to 50 ºCInstallation of USB Server Gigabit 2.0 and industrial process interface possible for integration into control systems over large outdoor distances
Accessories Shutter
Part Number - ACXISCBxxFeatures:In addition Xi cameras can be equipped with a shutterThe shutter protects the optics from falling parts within a response time of 100 msNote - 11 = For different cable lengths
Accessories Water Cooled Housing
Part Number - ACXIWFeatures:The rugged water cooled housing allows the Xi infrared cameras to be employed in hot environments up to 250ºCRespective heat-resistant cables are also availableNote - Only water cooled housing
Additional Information Additional Information
The new microscope optics for the optris Xi 400 infrared camera allows reliable temperature measurement on tiny objects from 240 μm (MFOV). In combination with a suitable stand, this enables professional measurement of printed circuit boards and components in the electronics industry. The measuring distance between camera and object is variable between 90 and 110 mm. Due to the built-in motor focus, the camera can be easily mounted in the supplied PIX Connect software focus. For measuring even smaller objects we recommend the PI 640 microscope optics, smallest measuring spot: 28 μm (IFOV).
Specifications Accuracy
±2 ºC (±3.6 ºF) or ±2%, Whichever is Greater
Specifications Ambient Temperature Tamb
0 to 50 ºC | 32 to 122 ºF
Specifications Applications
Component Inspection of Circuit Boards | Infrared Technology for Fire Protection | Injection Molding | Workpiece Control During Drop Forging
Specifications Class
Ingress Protection (IP 67) (National Electrical Manufacturers Association (NEMA 4))
Specifications Detector
Focal Plane Array (FPA)
Specifications Diameter
36 x 90 mm | 1.41 x 3.54 in
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Direct In Outputsstandard Process Interface Pif
1x 0/4-20 mA Output | 1x Input (Analog or Digital) | Optically Isolated
Specifications Ethernet Cable Length
100 m
Specifications Fields Of View Fov Optics
12º (f = 12.7 mm [0.50 in]) | 30º (f = 5.1 mm [0.20 in]) | 55º (f = 3.1 mm [0.12 in]) | 80º (f = 2.3 mm [0.09])
Specifications Focus
Manual Motor Focus
Specifications Frame Rate
50 Hz
Specifications Industrial Process Interface Pif
1x Fail-Safe Relay; Stackable Up to 3 PIFs; Optically Isolated | 3x 0/4 - 20 mA or 0-10 V Outputs | 3x Input (Analog or Digital) | 3x Relays (0 - 30 V)/400 mA)
Specifications Optical Resolution
80 x 80 px
Specifications Optical Resolution Ds
190:1
Specifications Optical Resolution Ds Optics
12 º
Specifications Personal Computers Pc Interfaces
Ethernet (100 Mbit/s) | Power Over Ethernet (PoE) | Universal Serial Bus (USB 2.0)
Specifications Power Supply
Power Over Ethernet (PoE) | Universal Serial Bus (USB)
Specifications Shockvibration
International Electrotechnical Commission (IEC 60068-2)
Specifications Spectral Range
8 to 14 µm
Specifications Standard Universal Serial Bus Usb Cable Length
1 m
Specifications Temperature Ranges
-20 to 100 ºC | 0 to 250 ºC | -4 to 212 ºF | 32 to 482 ºF
Specifications Temperature Ranges Accuracy Effective Starting At
(20) 150 to 900 ºC | 302 to 1652 ºF
Specifications Thermal Sensitivity Netd
100 mK
Specifications Thread
M30 x 1
Specifications Uncooled Pitch Detector
34 µm
Specifications Universal Serial Bus Usb Cable Length
3 m | 5 m | 10 m | 20 m | 9.8 ft | 16.4 ft | 32.8 ft | 65.6 ft
Specifications Weight Depending On Lens
201 to 210 g | 7.09 to 7.41 oz
Standard Scope Of Supply Standard Scope Of Supply
Xi cameraUSB cable (1 m (3.3 ft))Cable for in-/outputs (1 m (3.3 ft)) with terminal blockMounting bracket with tripod thread, mounting nutSoftware package optris PIX ConnectQuick start guide
