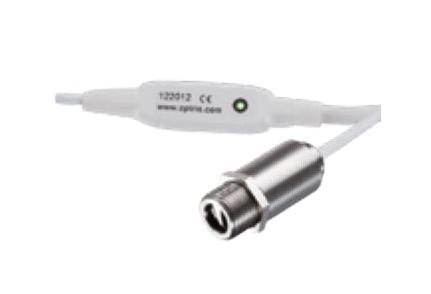

The Optris Compact Series 2:1 Infrared Thermometer is designed for precision temperature measurement in compact and hot environments. With a single-piece sensor and smart LED display, this thermometer offers accuracy and ease of use. It features an optical resolution of 2:1, spectral range of 8 to 14 µm, and temperature ranges from -50 to 1030 ºC (-58 to 1886 ºF). The thermometer's compact design and robust construction make it suitable for both consumer and institutional buyers seeking reliable temperature monitoring solutions.
Product Specifications
Accessories Air Purges And Protective Housings
ACCSAP - Air purge collar (for heads with optical resolutionââ¥10:1)ACCTAPMH - Air purge collar for Massive housing (D06)/CSmicro HS/CThot/CT P3/CT P7High mass housing of:Compact, brass (D06ACCTMHB)Anodized aluminum (D06ACCTMHA)Stainless steel (D06ACCTMHS)Stainless steel version with CF optics (D06ACCTMHSCF)Stainless steel version for HT CF optics (D06ACCTMHSCFHT)ACCTAPLCFHT - Air purge collar, laminar, with integrated CF lens (for 1M/ 2M/ 3M)ACCTAPL - Air purge collar, laminarACCTAP/ACCTAP2 (2:1 Optics) - Air purge for CT heads (not for heads with 32 mm length)
Accessories Combinations
ACCTAPL - Air purge collar, laminar + ACCTMG - Mounting fork = Device adjustable in two axesACCTFB2 - Mounting bracket for sensing head + Sighting tool + D08ACCTLST/ACCTOEMLST - OEM Laser-Sighting tool = Sensing head with Laser Sighting toolACCTFB - Mounting bracket for M12x1 sensing head + ACCTMB - Mounting bolt = ACCTAB - Device adjustable in two axesD06ACCTAPMH - Massive housing, stainless steel + ACCTAPMH - Air purge, stainless steel = Massive housing with air purge
Accessories Mechanical Accessories
ACCTFB/ACCTFBMH/ACCTFB2 - Mounting bracket, adjustable in one axis (M12x1 sensing head, massive housing, mounting of CT sensing head + Laser-Sighting tool)ACCTTAS - Tilt assembly for heads with opticalâresolutionââ¥10:1ACCTKF40B270/ACCTKF40GE - KF40 flange for CT1M, 2M, 3M with B270 window (up to 10-7 mbar)/KF40 flange for CTLT with Ge window (up to 10-7 mbar)ACCTRAIL - Rail mount adapter for CT electronicsACCTMB - Mounting bolt with thread M12x1ACCTMG - Mounting fork, adjustable in 2 axes, with thread M12x1
Accessories Optical Accessories
ACCTCF/ACCTPW - CF-lens or protective window (for LT) for M12x1 sensing headACCTCFHT / ACCTPWHT for 1M, 2M, 3MACCTCFE/ACCTPWE - CF-lens or protective window (for LT) with external thread for air purge or massive housingACCTCFHTE/ACCTPWHTE for 1M, 2M, 3MD08ACCTLST/ACCTOEMLST - Laser-Sighting tool (for CT )/OEM Laser-Sighting tool, 635 nm, rotation symmetrical, for connection to CT electronics, power supply via CT electronic box or batteryACCTRAM - Right angle mirror for measurements 90º to the sensor axisâforâsensingâheadsâwithâopticalâresolutionââ¥10:1ACCTPA + ACCTST20 20 (20 mm length)/ACCTST40 (40 mm length)/ACCTST88 (88 mm length) Pipe adapter with M12x1 internal thread + Sighting tube with M12x1 external thread
Specifications Accuracy
±1 ºC or ±1% | ±2 ºF or ±1%
Specifications Classificationspecial Features
Single-Piece Sensor with Electronics in Cable; Smart Light Emitting Diode (LED) Display
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Functional Number
1
Specifications Head Cable Shortening
Behind Electronics
Specifications Maximum Electronics Ambient Temperature Tamb
80 ºC | 176 ºF
Specifications Maximum Electronics Ambient Temperature Tamb Ma V
75 ºC | 167 ºF
Specifications Maximum Head Ambient Temperature Tamb
120 ºC | 248 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
2:1
Specifications Response Time At 90 Percent
14 ms
Specifications Sighting
Light Emitting Diode (LED) Aiming
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 09 I
0.1 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 23 M
2.5 mm
Specifications Smallest Spot Sf Optics
7 mm | 0.3 in
Specifications Spectral Range
8 to 14 µm
Specifications Standard Cable Length Options
0.5 + 0.5 m | Up to 9 m | 1.6 ft | Up to 29.5 ft
Specifications Temperature Ranges
-50 to 1030 ºC | -58 to 1886 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M12 x 1
