Optris Compact Series 2:1 IR Thermometer
Optris Compact Series 2:1 IR Thermometer
SKU:COM-94c325
Precise temperature readings in cramped spaces. 2:1 optical resolution, -50 to 600 ºC range, rapid 150 ms response time. Ideal for consumer & institutional use.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Optris Compact Series 2:1 IR Thermometer
$349.99
Quantity: 1
Claim Your Seller Account
Optris Compact Series 2:1 IR Thermometer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

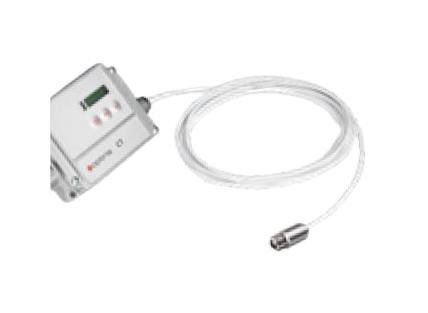

The Optris Compact Series 2:1 Infrared Thermometer is designed for precise temperature measurements in confined and hot environments. Featuring a two-piece sensor with a separate electronic box, this thermometer offers an optical resolution of 2:1 and a spectral range of 8 to 14 µm. With a temperature range of -50 to 600 ºC (-58 to 1112 ºF), a response time of 150 ms, and an accuracy of ±1 ºC or ±1%, this device ensures reliable and quick temperature readings. Equipped with multiple accessories for various mounting and optical configurations, the Optris Compact Series IR Thermometer is a versatile solution for both consumer and institutional users.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Air Purges And Protective Housings
ACCSAP - Air purge collar (for heads with optical resolutionââ¥10:1)ACCTAPMH - Air purge collar for Massive housing (D06)/CSmicro HS/CThot/CT P3/CT P7High mass housing of:Compact, brass (D06ACCTMHB)Anodized aluminum (D06ACCTMHA)Stainless steel (D06ACCTMHS)Stainless steel version with CF optics (D06ACCTMHSCF)Stainless steel version for HT CF optics (D06ACCTMHSCFHT)ACCTAPLCFHT - Air purge collar, laminar, with integrated CF lens (for 1M/ 2M/ 3M)ACCTAPL - Air purge collar, laminarACCTAP/ACCTAP2 (2:1 Optics) - Air purge for CT heads (not for heads with 32 mm length)
Accessories Combinations
ACCTAPL - Air purge collar, laminar + ACCTMG - Mounting fork = Device adjustable in two axesACCTFB2 - Mounting bracket for sensing head + Sighting tool + D08ACCTLST/ACCTOEMLST - OEM Laser-Sighting tool = Sensing head with Laser Sighting toolACCTFB - Mounting bracket for M12x1 sensing head + ACCTMB - Mounting bolt = ACCTAB - Device adjustable in two axesD06ACCTAPMH - Massive housing, stainless steel + ACCTAPMH - Air purge, stainless steel = Massive housing with air purge
Accessories Mechanical Accessories
ACCTFB/ACCTFBMH/ACCTFB2 - Mounting bracket, adjustable in one axis (M12x1 sensing head, massive housing, mounting of CT sensing head + Laser-Sighting tool)ACCTTAS - Tilt assembly for heads with opticalâresolutionââ¥10:1ACCTKF40B270/ACCTKF40GE - KF40 flange for CT1M, 2M, 3M with B270 window (up to 10-7 mbar)/KF40 flange for CTLT with Ge window (up to 10-7 mbar)ACCTRAIL - Rail mount adapter for CT electronicsACCTMB - Mounting bolt with thread M12x1ACCTMG - Mounting fork, adjustable in 2 axes, with thread M12x1
Accessories Optical Accessories
ACCTCF/ACCTPW - CF-lens or protective window (for LT) for M12x1 sensing headACCTCFHT / ACCTPWHT for 1M, 2M, 3MACCTCFE/ACCTPWE - CF-lens or protective window (for LT) with external thread for air purge or massive housingACCTCFHTE/ACCTPWHTE for 1M, 2M, 3MD08ACCTLST/ACCTOEMLST - Laser-Sighting tool (for CT )/OEM Laser-Sighting tool, 635 nm, rotation symmetrical, for connection to CT electronics, power supply via CT electronic box or batteryACCTRAM - Right angle mirror for measurements 90º to the sensor axisâforâsensingâheadsâwithâopticalâresolutionââ¥10:1ACCTPA + ACCTST20 20 (20 mm length)/ACCTST40 (40 mm length)/ACCTST88 (88 mm length) Pipe adapter with M12x1 internal thread + Sighting tube with M12x1 external thread
Specifications Accuracy
±1 ºC or ±1% | ±2 ºF or ±1%
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box Including Display and Programming Keys
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Head Cable Shortening
-0.1 k/m
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
130 ºC | 266 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
2:1
Specifications Response Time At 95 Percent
150 ms
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 09 I
0.1 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 23 M
2.5 mm
Specifications Smallest Spot Sf Optics
7 mm | 0.3 in
Specifications Spectral Range
8 to 14 µm
Specifications Standard Cable Length Options
1 m | 15 m | 3 m | 8 m | 26.2 ft | 3.3 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
-50 to 600 ºC | -58 to 1112 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M12 x 1
