Optris High Performance 1.0 Micrometer Laser Infrared Thermometer
Optris High Performance 1.0 Micrometer Laser Infrared Thermometer
SKU:HIG-77bd4a
High precision Optris 1.0 µm Laser Infrared Thermometer for accurate high temperature measurements.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Optris High Performance 1.0 Micrometer Laser Infrared Thermometer
$2,799.99
Quantity: 1
Claim Your Seller Account
Optris High Performance 1.0 Micrometer Laser Infrared Thermometer
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

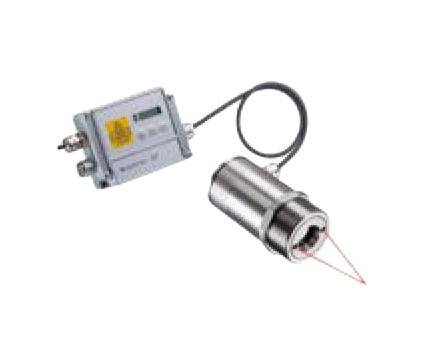

The Optris High Performance Series 1.0 Micrometer Laser Infrared Thermometer offers exceptional precision with a spectral range of 1.0 µm, ideal for high temperature measurements ranging from 485 to 1050 ºC | 905 to 1922 ºF. Featuring a two-piece sensor design and double laser sighting, this thermometer provides unparalleled accuracy (±0.3% Tmeas +2 ºC) and a quick response time of 1 ms. With an optical resolution of 150:1 and versatile cable length options, it is engineered for demanding applications where accuracy and reliability are essential. This thermometer is designed to meet the rigorous standards of industrial and government procurement requirements.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for High Temperature Measuring of Liquid Metal, Including Programming Keys and Display
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
150:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
3.7 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.15 in
Specifications Spectral Range
1.0 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
485 to 1050 ºC | 905 to 1922 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
