Optris High Performance 1.6 Micrometer Laser Infrared Thermometer
Optris High Performance 1.6 Micrometer Laser Infrared Thermometer
SKU:HIG-73484d
Accurate 1.6μm Laser Infrared Thermometer with 150:1 Optical Resolution, Double Laser Sighting, and High-Temperature Measuring Capabilities
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Initiate Order
Optris High Performance 1.6 Micrometer Laser Infrared Thermometer
$1,099.99
Quantity: 1
Claim Your Seller Account
Optris High Performance 1.6 Micrometer Laser Infrared Thermometer
$1,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

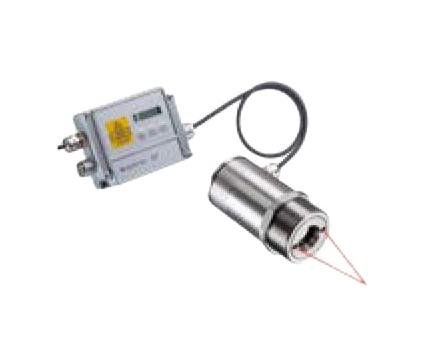

The Optris High Performance 1.6 Micrometer Laser Infrared Thermometer is a cutting-edge solution designed for precise temperature measurements within a wide spectral range of 1.6 μm. With an unbeatable optical resolution of 150:1 and a double laser sighting feature, this thermometer ensures accurate results for temperatures ranging from 250 to 800°C. It boasts a fast response time of 1 ms and an exceptional accuracy of ±(0.3% Tmeas +2°C). Equipped with advanced features like a two-piece sensor and a robust construction, this instrument is ideal for high-temperature applications, including liquid metal measurement, meeting the stringent standards of institutional and government procurement.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for High Temperature Measuring of Liquid Metal, Including Programming Keys and Display
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
150:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
3.7 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.15 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
250 to 800 ºC | 482 to 1472 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
