Optris High Performance 2.3 µm Laser IR Thermometer
Optris High Performance 2.3 µm Laser IR Thermometer
SKU:HIG-eebc3a
Get precise temperature measurements with Optris High Performance 2.3 µm Laser IR Thermometer - ideal for industrial applications
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Optris High Performance 2.3 µm Laser IR Thermometer
$349.99
Quantity: 1
Claim Your Seller Account
Optris High Performance 2.3 µm Laser IR Thermometer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

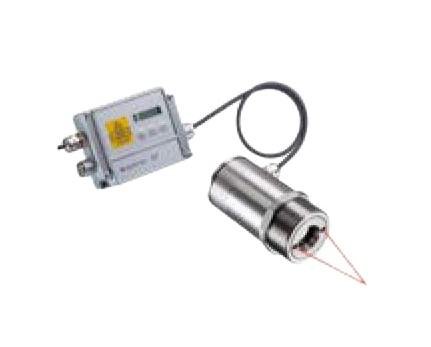

Experience unparalleled precision with the Optris High Performance Series 2.3 Micrometer (µm) Spectral Range Laser Infrared Thermometer. This advanced thermometer features an extended InGaAs detector, dual laser sighting for accurate measurements, and a wide temperature range of 100 to 600 °C. With a 100:1 optical resolution and a response time of just 1 ms, this thermometer ensures swift and precise temperature readings, making it ideal for industrial applications requiring high accuracy. The Optris Infrared Sensing technology guarantees reliable performance, while the included accessories provide added flexibility and convenience for various mounting options.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for Low Temperature Measuring of Liquid Metal, Including Programming Keys and Display
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
100:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
11 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.4 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
100 to 600 ºC | 212 to 1112 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
