Optris High Performance 5.0 µm Laser Infrared Thermometer
Optris High Performance 5.0 µm Laser Infrared Thermometer
SKU:HIG-4776b9
Accurate 5.0 µm Laser Infrared Thermometer for high precision temperature measurements in glass applications
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Optris High Performance 5.0 µm Laser Infrared Thermometer
$799.99
Quantity: 1
Claim Your Seller Account
Optris High Performance 5.0 µm Laser Infrared Thermometer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

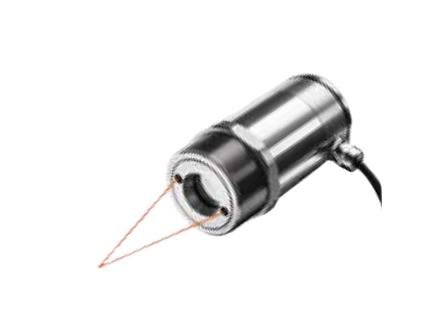

The Optris High Performance 5.0 µm Laser Infrared Thermometer delivers unparalleled accuracy with a spectral range of 5.0 µm, ideal for temperature measurements ranging from 200 to 1450 ℃ | 392 to 2624 ℉. Featuring a thermopile detector and an optical resolution of 45:1, this single-piece two-wire thermometer ensures precise readings with a temperature resolution of 0.1 K. The double laser sighting and rapid 30 ms response time offer quick and reliable data capture. With a wide range of accessories available, including mounting brackets and optical enhancements, this thermometer is a versatile solution for glass temperature measurement applications.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
(±3 ºF or ±1%) | ±1.5 ºC or ±1%
Specifications Classificationspecial Features
Single-Piece Two-Wire Infrared Thermometer for Temperature Measurement of Glass
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
45:1
Specifications Response Time At 90 Percent
30 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 28 I
0.06 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 70 M
1.6 mm
Specifications Smallest Spot Sf Optics At 1200 Millimeter Mm
27 mm
Specifications Smallest Spot Sf Optics At 4724 Inch In
1.1 in
Specifications Spectral Range
5.0 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
200 to 1450 ºC | 392 to 2624 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
