Optris High Performance 5.0 Micrometer Laser Infrared Thermometer
Optris High Performance 5.0 Micrometer Laser Infrared Thermometer
SKU:HIG-97c1a1
Achieve unmatched precision and accuracy with the Optris High Performance 5.0 µm Laser Infrared Thermometer.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Optris High Performance 5.0 Micrometer Laser Infrared Thermometer
$1,899.99
Quantity: 1
Claim Your Seller Account
Optris High Performance 5.0 Micrometer Laser Infrared Thermometer
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

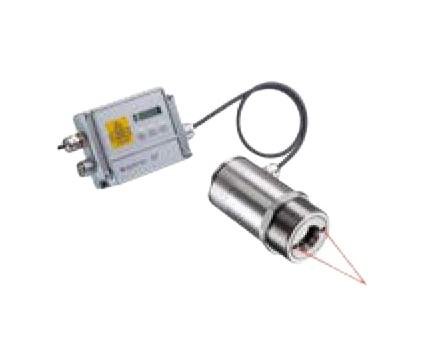

Experience unparalleled precision with the High Performance Series 5.0 Micrometer Laser Infrared Thermometer from Optris. Featuring a two-piece sensor for precise glass measurements, this thermometer offers a spectral range of 5.0 µm and temperature ranges from 250 to 1650 ºC. With an optical resolution of 70:1 and double laser sighting, it ensures accuracy and efficiency in industrial applications. Designed with compliance in mind, this thermometer meets Federal/DoD procurement standards, GSA requirements, and FAR compliance factors.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
(±3 ºF or ±1%) | ±1.5 ºC or ±1%
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for Measuring of Glass, Including Programming Keys and Display
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
70:1
Specifications Response Time At 90 Percent
80 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 28 I
0.04 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 70 M
1 mm
Specifications Smallest Spot Sf Optics At 1200 Millimeter Mm
17 mm
Specifications Smallest Spot Sf Optics At 4724 Inch In
0.7 in
Specifications Spectral Range
5.0 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
250 to 1650 ºC | 482 to 2912 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
