Optris High Performance 5.0 Micrometer Spectral Range Laser Infrared Thermometer
Optris High Performance 5.0 Micrometer Spectral Range Laser Infrared Thermometer
SKU:HIG-951a0c
High Performance Laser Infrared Thermometer with 5.0 µm Spectral Range, ideal for precise glass temperature measurements.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Optris High Performance 5.0 Micrometer Spectral Range Laser Infrared Thermometer
$699.99
Quantity: 1
Claim Your Seller Account
Optris High Performance 5.0 Micrometer Spectral Range Laser Infrared Thermometer
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

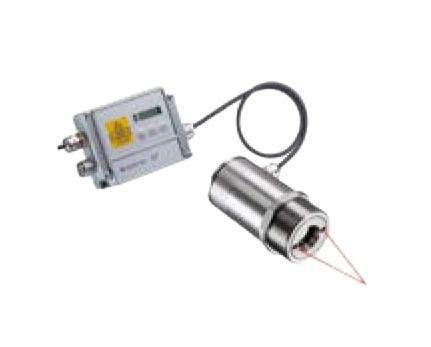

The Optris High Performance Series 5.0 Micrometer Laser Infrared Thermometer offers unparalleled accuracy and precision for measuring temperatures ranging from 200 to 1450 °C (392 to 2642 °F). Featuring a thermopile detector and double laser sighting, this thermometer has an optical resolution of 45:1 and a temperature resolution of 0.1 K. With innovative features like a two-piece sensor design and a comprehensive range of accessories, including mounting brackets and optical add-ons, this thermometer is ideal for glass measuring applications. Designed to meet the highest standards, Optris ensures reliability and performance in every use case.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
(±3 ºF or ±1%) | ±1.5 ºC or ±1%
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for Measuring of Glass, Including Programming Keys and Display
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
45:1
Specifications Response Time At 90 Percent
10 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 28 I
0.04 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 70 M
1 mm
Specifications Smallest Spot Sf Optics At 1200 Millimeter Mm
17 mm
Specifications Smallest Spot Sf Optics At 4724 Inch In
0.7 in
Specifications Spectral Range
5.0 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
200 to 1450 ºC | 392 to 2642 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
