Optris High Performance Laser Infrared Thermometer - 2.3µm Spectral Range
Optris High Performance Laser Infrared Thermometer - 2.3µm Spectral Range
SKU:HIG-f4059c
Experience precision with the Optris High Performance 2.3µm Laser Infrared Thermometer for high-accuracy measurements in industrial settings.
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Initiate Order
Optris High Performance Laser Infrared Thermometer - 2.3µm Spectral Range
$1,099.99
Quantity: 1
Claim Your Seller Account
Optris High Performance Laser Infrared Thermometer - 2.3µm Spectral Range
$1,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

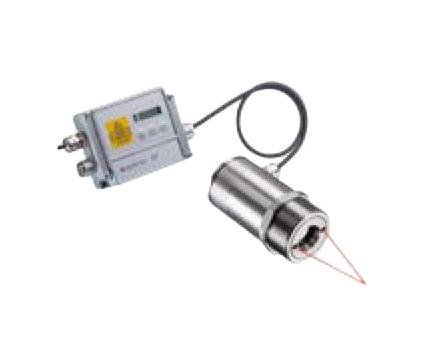

Experience cutting-edge temperature measurement with the Optris High Performance Series 2.3 Micrometer Laser Infrared Thermometer. Boasting the highest optical resolution, this infrared thermometer features an Extended InGaAs detector and a double laser sighting system for precise targeting. With a temperature range of 50 to 400°C and optical resolution of 60:1, this thermometer offers unparalleled accuracy. Its innovative design includes a two-piece sensor with a separate electronic box, making it ideal for low-temperature measurements of liquid metal. The thermometer's robust construction and versatile accessories ensure reliable performance in diverse industrial environments.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for Low Temperature Measuring of Liquid Metal, Including Programming Keys and Display
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
60:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
11 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.4 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
50 to 400 ºC | 122 to 752 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
