Optris High Performance Series Infrared Thermometer
Optris High Performance Series Infrared Thermometer
SKU:HIG-9bfbc1
Highly precise Optris Infrared Thermometer with 8-14 µm spectral range, 50:1 optical resolution, and double laser sighting for rapid and accurate temperature readings in industrial settings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Optris High Performance Series Infrared Thermometer
$899.99
Quantity: 1
Claim Your Seller Account
Optris High Performance Series Infrared Thermometer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

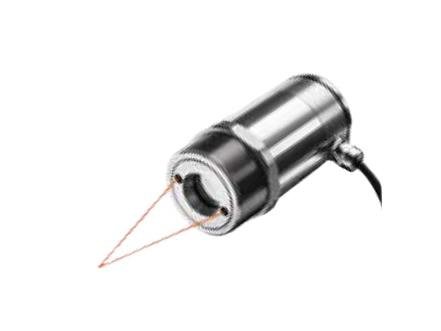

The Optris High Performance Series 8 to 14 Micrometer Laser Infrared Thermometer is engineered to deliver unparalleled precision and accuracy in temperature measurements for industrial and scientific applications. Featuring a single-piece two-wire sensor with electronics in the sensing head and a thermopile detector, this thermometer offers a spectral range of 8 to 14 µm and temperature resolution of 25 mK. With an optical resolution of 50:1 and a double laser sighting system, it ensures precise targeting and quick response time of 150 ms at 90% accuracy. The Optris thermometer is designed for reliability and durability, with optional accessories for enhanced functionality and adaptability to various environments.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±1 ºC or ±1% | ±2 ºF or ±1%
Specifications Classificationspecial Features
Single-Piece Two-Wire Sensor with Electronics in Sensing Head
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
50:1
Specifications Response Time At 90 Percent
150 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 28 I
0.06 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 70 M
1.4 mm
Specifications Smallest Spot Sf Optics At 1200 Millimeter Mm
24 mm
Specifications Smallest Spot Sf Optics At 4724 Inch In
0.9 in
Specifications Spectral Range
8 to 14 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
-20 to 150 ºC | -4 to 302 ºF
Specifications Temperature Resolution
25 mK
Specifications Thread Sensing Head
M48 x 1.5
