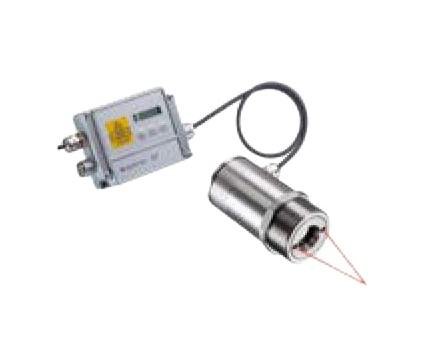

The Optris Infrared Spectral Laser Thermometer from the High Performance Series offers unparalleled precision with its 1.0 μm Spectral Range technology. Designed for high temperature measurements up to 1800 °C, this thermometer features a Si detector, double laser sighting, and an optical resolution of 300:1. With a response time of just 1 ms and exceptional accuracy of ±0.3%, this thermometer is ideal for liquid metal applications. Its robust construction, adjustable mounting brackets, and various accessory options make it a versatile choice for industrial settings.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for High Temperature Measuring of Liquid Metal, Including Programming Keys and Display
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
3.7 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.15 in
Specifications Spectral Range
1.0 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
650 to 1800 ºC | 1202 to 3272 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
