Optris Infrared Spectral Range Laser Thermometer
Optris Infrared Spectral Range Laser Thermometer
SKU:HIG-da1993
Achieve precise temperature measurements with the Optris Infrared Spectral Range Laser Thermometer. Ideal for industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Optris Infrared Spectral Range Laser Thermometer
$699.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Spectral Range Laser Thermometer
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

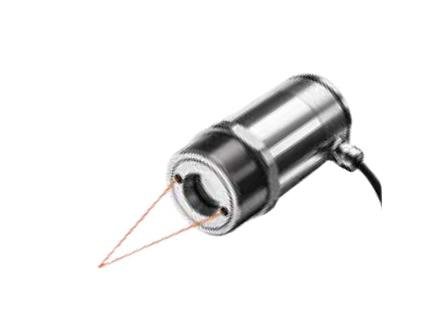

Experience unparalleled precision with the Optris Infrared Spectral Range Laser Thermometer from the High Performance Series. This advanced thermometer, featuring a Single-Piece Two-Wire Sensor with high-quality InGaAs Detector, provides accurate temperature measurements ranging from 250 to 800 degrees Celsius. With an impressive 150:1 Optical Resolution and double laser sighting for precise targeting, this thermometer is ideal for industrial applications requiring exact temperature monitoring on metals. Its quick 10 ms response time, wide temperature range coverage, and various accessory options make it a versatile solution for diverse measurement needs.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Single-Piece Two-Wire Sensor with Electronics in Sensing Head for Measurement of Metal
Specifications Detector
Intended InGaAs
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
150:1
Specifications Response Time At 90 Percent
10 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
3.7 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.02 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
250 to 800 ºC | 482 to 1472 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
