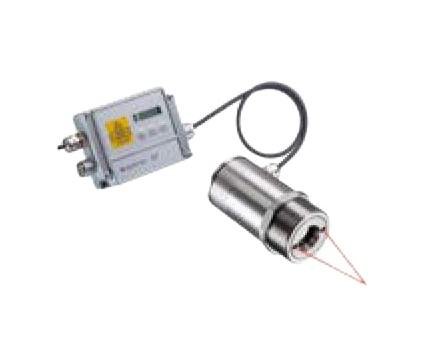

The Optris Infrared Thermometer 7.9 μm, part of the High Performance Series, offers unparalleled accuracy and efficiency for measuring temperatures ranging from 100 to 1200 °C. With a thermopile detector, double laser sighting, and an optical resolution of 45.1, this thermometer provides precise readings with a temperature resolution of 0.5K. It comes with multiple accessories for versatile mounting options and is designed to meet the stringent standards of institutional and government procurements, ensuring reliability and compliance.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
(±3 ºF or ±1%) | ±1.5 ºC or ±1%
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for Measuring of Plastic Foils, Including Programming Keys and Display
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
45.1
Specifications Response Time At 90 Percent
150 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 70 M
1.6 mm
Specifications Smallest Spot Sf Optics At 1200 Millimeter Mm
27 mm
Specifications Smallest Spot Sf Optics At 4724 Inch In
1.1 in
Specifications Spectral Range
7.9 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
100 to 1200 ºC | 32 to 2192 ºF
Specifications Temperature Resolution
0.5 K
Specifications Thread Sensing Head
M48 x 1.5
