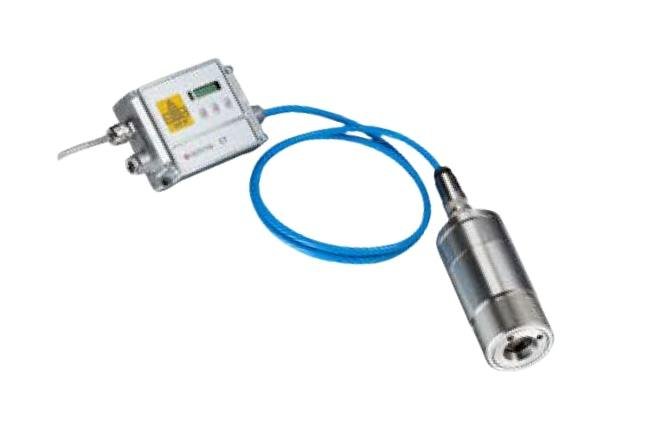

Enhance temperature measurement accuracy with the Optris Infrared Video Thermometer featuring a video channel and patented cross hair laser for precise target visualization. This two-piece sensor, from Optris Infrared Sensing, is designed for low temperature measurement of metals. With a spectral range of 2.3 µm and a temperature range of 100 to 600°C, this thermometer offers scalable software-enabled temperature resolution and high optical resolution of 100:1. The video camera and cross hair laser enable swift and accurate readings, making it ideal for a range of industrial applications.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for Low Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
100:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.04 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.9 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
2 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.08 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
100 to 600 ºC | 212 to 1112 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
