Optris Infrared Video Thermometer - 100 to 600°C Temperature Range
Optris Infrared Video Thermometer - 100 to 600°C Temperature Range
SKU:INF-a16a57
Accurate & visual temperature readings from 100 to 600°C with adjustable focus & video sighting. Ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Optris Infrared Video Thermometer - 100 to 600°C Temperature Range
$899.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Video Thermometer - 100 to 600°C Temperature Range
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

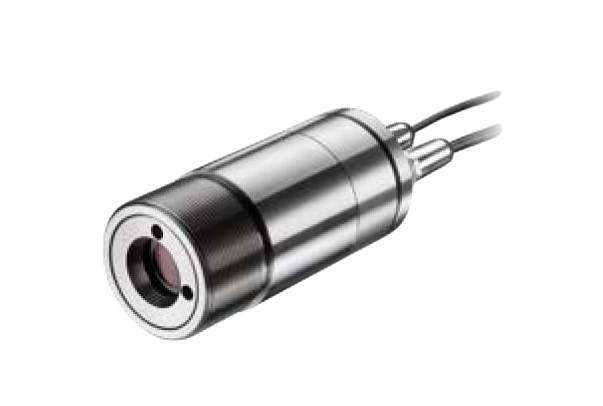

The Optris Infrared Video Thermometer offers precise temperature measurements from 100 to 600°C for metals and ceramics. Featuring an adjustable focus, patented crosshair laser, and video sighting, this two-wire thermometer ensures accurate targeting and visualization. With a spectral range of 2.3 µm, optical resolution of 100:1, and fast 20ms response time, it meets the highest standards in industrial temperature monitoring.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
500 mA
Specifications Additional Alarm Output Voltage Open Collector
0 to 30 V
Specifications Cable Length Options
8 m | 15 m | 26.2 ft | 49.2 ft
Specifications Classificationspecial Features
Two-wire infrared thermometer for temperature measurements of metals and ceramics from 50 ºC to 600 ºC with adjustable focus, patented crosshair laser and video sighting
Specifications Detector
InGaAs
Specifications Direct Current Dc Power Supply Voltage
5 to 28 V
Specifications Maximum Electronics Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Maximum Head Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
100:1
Specifications Response Time At 90 Percent
20 ms
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.9 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
2 mm
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
100 to 600 ºC | 212 to 1112 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
