Optris Infrared Video Thermometer - 150 to 1000°C Range
Optris Infrared Video Thermometer - 150 to 1000°C Range
SKU:INF-0fd9f0
Precision infrared video thermometer with patented laser for accurate target localization. Ideal for precise industrial temperature measurements.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Optris Infrared Video Thermometer - 150 to 1000°C Range
$1,499.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Video Thermometer - 150 to 1000°C Range
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

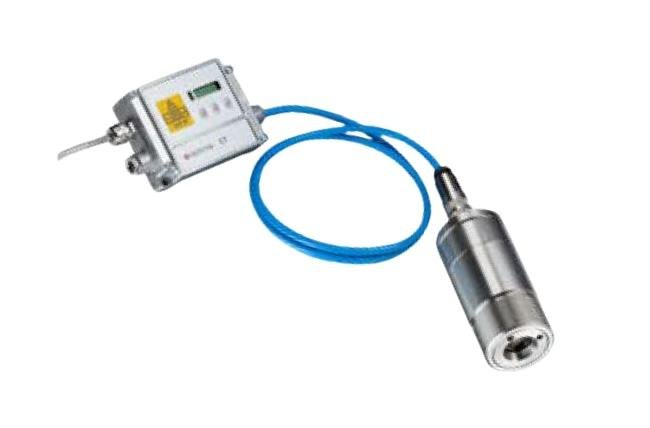

The Optris Infrared Video Thermometer offers unparalleled precision with its patented cross hair laser and video channel for precise target visualization. This device, classified with special features including a two-piece sensor and exchangeable sensing head, is ideal for low temperature measurement of metals. With a temperature range of 150 to 1000°C, spectral range of 2.3 µm, and 300:1 optical resolution, this thermometer ensures accurate readings. Its video camera and cross hair laser aid in swift and accurate targeting, while the device's response time of 1 ms guarantees efficiency in various applications. Scalable via software, the Optris thermometer meets the demands of both industrial and institutional settings, guaranteeing reliability and accuracy in temperature measurements.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for Low Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Specifications available for object temperatures ⥠lower measurement range 50 ºC (122 ºF)Scalable Via Software
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
150 to 1000 ºC | 302 to 1832 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
