Optris Infrared Video Thermometer (250-1800°C)
Optris Infrared Video Thermometer (250-1800°C)
SKU:INF-adf7d1
Precision meets innovation with the Optris Infrared Video Thermometer. Achieve accurate temperature measurements from 250-1800°C with ease using the advanced video channel and cross hair laser for pinpoint targeting.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Optris Infrared Video Thermometer (250-1800°C)
$1,599.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Video Thermometer (250-1800°C)
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

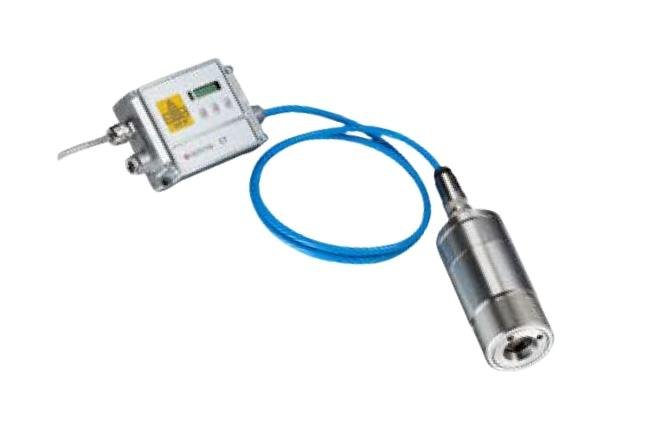

The Optris Infrared Video Thermometer offers a temperature range of 250 to 1800°C, equipped with a video channel and patented cross hair laser for precise target visualization and location. Featuring a two-piece sensor with an electronic box, this thermometer is ideal for low-temperature measurement of metals. With an extended InGaAs detector and spectral range of 2.3 µm, it provides accurate readings with a temperature resolution of 0.1 K and optical resolution of 300:1. The thermometer's video camera and cross hair laser ensure quick response time and high accuracy, making it a reliable choice for industrial applications.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for Low Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Specifications available for object temperatures ⥠lower measurement range 50 ºC (122 ºF)Scalable Via Software
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
250 to 1800 ºC | 482 to 3272 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
