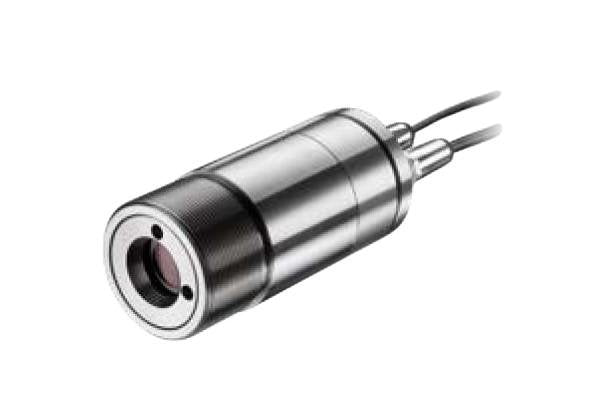

Optris Infrared Video Thermometer - 250 to 800°C
Optris Infrared Video Thermometer - 250 to 800°C
SKU:INF-6963c3
Accurate Optris Infrared Video Thermometer with patented laser & video channel for precise metal measurements from 250 to 800°C.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Optris Infrared Video Thermometer - 250 to 800°C
$699.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Video Thermometer - 250 to 800°C
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris Infrared Video Thermometer offers unparalleled precision with a patented cross hair laser, video channel, and a wide temperature range of 250 to 800°C (482 to 1472°F). Featuring a single-piece sensor with advanced electronics, this thermometer provides accurate measurements for metals. With an optical resolution of 150:1 and a rapid 10ms response time, this thermometer ensures quick and precise results. The included video camera and cross hair laser aid in target visualization and precise location, making it ideal for industrial applications where accuracy is paramount.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
500 mA
Specifications Additional Alarm Output Voltage Open Collector
0 to 30 V
Specifications Cable Length Options
8 m | 15 m | 26.2 ft | 49.2 ft
Specifications Classificationspecial Features
Single-Piece Two Wire Sensor with Electronics in Sensing Head, Video Camera and Cross Hair Laser for Measuring Metal
Specifications Detector
Intended InGaAs
Specifications Direct Current Dc Power Supply Voltage
5 to 28 V
Specifications Maximum Electronics Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Maximum Head Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
150:1
Specifications Response Time At 90 Percent
10 ms
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.02 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.6 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
1.3 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.05 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
250 to 800 ºC | 482 to 1472 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
