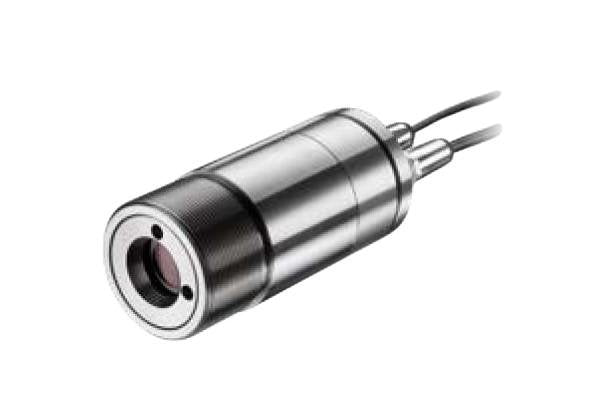

Optris Infrared Video Thermometer - 385 to 1600°C Range
Optris Infrared Video Thermometer - 385 to 1600°C Range
SKU:INF-b6d239
Accurate temperature measurements from 385 to 1600°C with video camera & cross hair laser, scalable via software.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Optris Infrared Video Thermometer - 385 to 1600°C Range
$1,299.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Video Thermometer - 385 to 1600°C Range
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris Infrared Video Thermometer offers precise target visualization with a patented cross hair laser, ideal for measuring metal surfaces within a range of 385 to 1600°C. Equipped with a video camera, the thermometer ensures accurate temperature measurements with an optical resolution of 300:1 and a response time of 10 ms. Scalable via software for enhanced functionality, this single-piece two-wire sensor meets the rigorous standards of institutional buyers requiring reliability and accuracy.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
500 mA
Specifications Additional Alarm Output Voltage Open Collector
0 to 30 V
Specifications Cable Length Options
8 m | 15 m | 26.2 ft | 49.2 ft
Specifications Classificationspecial Features
Single-Piece Two Wire Sensor with Electronics in Sensing Head, Video Camera and Cross Hair Laser for Measuring Metal
Specifications Detector
Intended InGaAs
Specifications Direct Current Dc Power Supply Voltage
5 to 28 V
Specifications Maximum Electronics Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Maximum Head Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
10 ms
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
385 to 1600 ºC | 725 to 1912 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
