Optris Infrared Video Thermometer - 50 to 400°C
Optris Infrared Video Thermometer - 50 to 400°C
SKU:INF-9cb3c7
Accurate Infrared Video Thermometer for precise temperature measurements and target visualization. Ideal for metals and ceramics.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Optris Infrared Video Thermometer - 50 to 400°C
$799.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Video Thermometer - 50 to 400°C
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

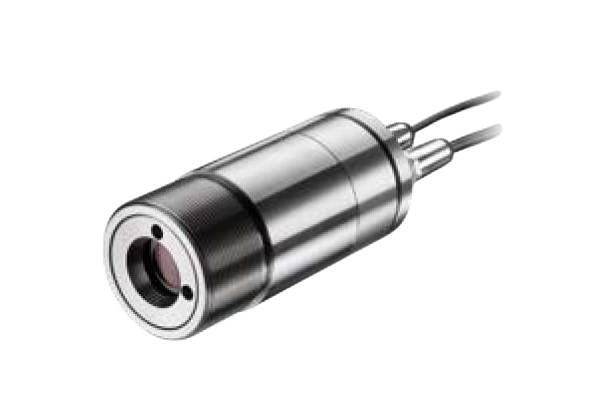

Experience precise temperature measurements with the Optris Infrared Video Thermometer featuring a video camera, patented crosshair laser, and adjustable focus. Ideal for metals and ceramics, this thermometer offers a temperature range from 50 to 400°C with an accuracy of ±(0.3% Tmeas +2°C). With a spectral range of 2.3 µm and optical resolution of 60:1, this instrument ensures reliable results for various applications.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
500 mA
Specifications Additional Alarm Output Voltage Open Collector
0 to 30 V
Specifications Cable Length Options
8 m | 15 m | 26.2 ft | 49.2 ft
Specifications Classificationspecial Features
Two-wire infrared thermometer for temperature measurements of metals and ceramics from 50 ºC to 600 ºC with adjustable focus, patented crosshair laser and video sighting
Specifications Detector
InGaAs
Specifications Direct Current Dc Power Supply Voltage
5 to 28 V
Specifications Maximum Electronics Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Maximum Head Ambient Temperature Tamb
70 ºC | 158 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
60:1
Specifications Response Time At 90 Percent
20 ms
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
1.5 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
3.3 mm
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
50 to 400 ºC | 122 to 752 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
