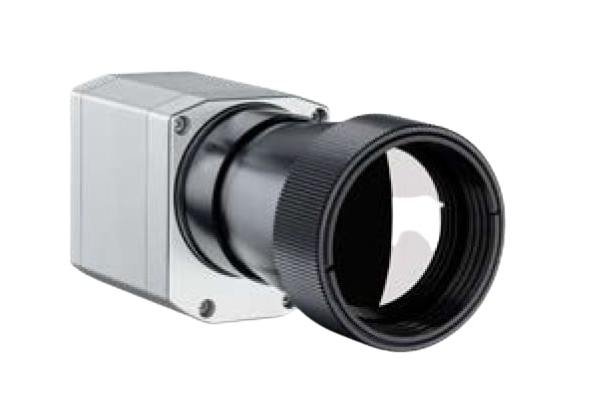

Optris PI Precision Infrared Camera
Optris PI Precision Infrared Camera
SKU:PRE-2044e2
High-resolution Optris PI Precision Infrared Camera with wide temperature range and rugged design. Ideal for industrial applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Optris PI Precision Infrared Camera
$2,499.99
Quantity: 1
Claim Your Seller Account
Optris PI Precision Infrared Camera
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris PI Precision Infrared Camera from the Precision Line offers exceptional imaging capabilities with a high-resolution Focal Plane Array detector. With an uncooled pitch detector of 17 µm and an optical resolution ranging from 640 x 480 px to 640 x 120 px at different frequencies, this camera delivers precise thermal imaging. The camera's temperature ranges from -20 to 482 ºF, ensuring accurate readings for a variety of applications. Equipped with a rugged build and IP67/NEMA 4 protection, it is ideal for industrial settings requiring reliable temperature measurement and analysis.
Product Specifications
Accessories Cooling Jacket Advanced
Part Number - ACPICJAFeatures:Operation at ambient temperatures up to 315 ºCAir/water cooling with integrated air purging and optional protective windowsModular concept for easy installation of different devices and opticsTrouble-free sensor disassembling on site with quick release chassisIntegration of additional components like PI NetBox, USB Server Gigabit 2.0 and Industrial Process Interface (PIF) in extended version
Accessories Industrial Process Interface Pif For Optris Pi Serie
Part Number - ACPIPIFMAFeatures:Industrial process interface for PI series with 3 analog/alarm outputs, 2 analog inputs, 1 digital input, 3 alarm relays500 V ACRMS isolation voltage between camera and processSeparate fail-safe relay outputPI hardware including all cable connections and PIX Connect software are permanently observed during operation
Accessories Laminar Air Purge
Part Number - ACCJAAPLSFeatures:Protection for rugged environmentsAir and water cooling, flexible laminar air stream for protection from dirt and dustEasy maintenance due to folding mechanismFocusable from the outside once installedProtection window for mechanical protection integratedAlso available as line scanner version
Accessories Outdoor Protective Housing For Infrared Cameras
Part Number - ACPIOPHFeatures:Environmental rating IP 66Additional air purge collar allows for a continuous operation in dusty and humid conditionsHeating element and built-in fan enable for a 24/7 operation from -40 ºC to 50 ºCInstallation of USB Server Gigabit 2.0 and industrial process interface possible for integration into control systems over large outdoor distances
Accessories Pi Netbox
Part Number - OPTPINBW732GFeatures:Miniature PC as an add-on to the PI series for stand-alone system or for cable extension via GigEIntegrated hardware and software watchdogInstallation of additional user software possibleStatus LEDsProcessor: Intel® E3845 Quad Core / 1.91 GHz, 16 GB SSD, 2 GB RAMConnections: 2x USB 2.0, 1x USB 3.0, 1x Mini USB 2.0, Micro HDMI, Ethernet (Gigabit Ethernet), Micro SDHC/SDXC cardWide supply voltage range (8 - 48 V DC) or Power over Ethernet (PoE)Can be integrated into CoolingJacket Advanced
Accessories Universal Serial Bus Usb Server Gigabit 20 For Optri
Part Number - ACPIUSBSGBFeatures:Fully USB 2.0 compatible, Data rates: 1.5/12/480 mbps, USB transfer mode: IsochronousNetwork connection via Gigabit EthernetFor optris PI series and Xi 400 as well as CTvideo/Csvideo seriesFull TCP/IP support incl. routing and DNSTwo independent USB portsSupply from PoE or external power supply with 24 - 48 V DCGalvanic isolation 500 VRMS (network connection)Remotely configurable via Web Based ManagementProven technology from Wiesemann & Theis
Specifications Ambient Derating
0.05 %/K
Specifications Ambient Temperature Tamb
0 to 50 ºC | 32 to 122 ºF
Specifications Applications
Component Inspection of Circuit Boards | Infrared Technology for Fire Protection | Injection Molding | Workpiece Control During Drop Forging
Specifications Class
Ingress Protection (IP 67) (National Electrical Manufacturers Association (NEMA 4))
Specifications Detector
Focal Plane Array (FPA)
Specifications Fields Of View Fov Optics
12º x 9º (F=1.1) / f= 44 mm (1.73 in) | Smallest Measuring Spot: 28 μm
Specifications Frame Rate
32 Hz
Specifications Frame Rate In Subframe Mode 640 X 120 Pixels
125 Hz
Specifications Non Condensing Relative Humidity
10 to 95 %
Specifications Optical Resolution At 125 Hertz Hz Frequency
640 x 120 px
Specifications Optical Resolution At 32 Hertz Hz Frequency
640 x 480 px
Specifications Optional Process Interface Pif
1x Digital Input (Maximum 24 V) | 1x Fail-Safe Relay | 2 x 0 - 10 V Inputs | 3 x 0/4 - 20 mA Outputs | 3 x Relays (0 - 30 V/400 mA)
Specifications Optional Temperature Ranges
200 to 1500 ºC | 392 to 2732 ºF
Specifications Personal Computers Pc Interfaces
Optional Universal Serial Bus (USB) to Gigabit Ethernet (GigE) Power Over Ethernet (PoE) | Universal Serial Bus (USB 2.0)
Specifications Power Supply
Via Universal Serial Bus (USB)
Specifications Shockvibration
International Electrotechnical Commission (IEC 60068-2)
Specifications Size
46 x 56 x 119 to 126 mm | 1.81 x 2.20 x 4.69 to 4.96 in
Specifications Spectral Range
8 to 14 µm
Specifications Standard Process Interface Pif
1x 0 - 10 V Input | 1x 0 - 10 V Output | 1x Digital Input (Maximum 24 V)
Specifications Storage Temperature
-40 to 70 ºC | -40 to 158 ºF
Specifications System Accuracy At Ambient Temperature Tamb 23 5
±2 ºC or ±2%, Whichever is Greater
Specifications Temperature Ranges
-20 to 100 ºC | 0 to 250 ºC | -4 to 212 ºF | 32 to 482 ºF
Specifications Temperature Ranges Accuracy Effective Starting At
150 to 900 ºC | 302 to 1652 ºF
Specifications Thermal Sensitivity Netd
120 mK
Specifications Tripod Mount
1/4 - 20 Unified Coarse (UNC)
Specifications Uncooled Pitch Detector
17 µm
Specifications Weight Including Lens
370 g | 13.05 oz
Standard Scope Of Supply Standard Scope Of Supply
USB camera with lens kit (standard lens [PI 640: O33], microscope lens [MO44])Microscope standStandard USB cable (1 m (3.3 ft))Standard-PIFManualSoftware package optris PIX ConnectRugged outdoor case
