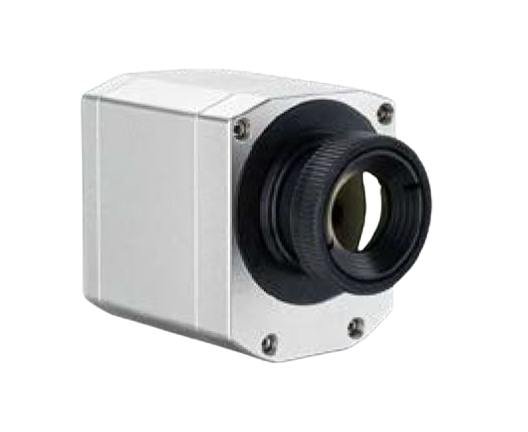

Optris Precision Line PI Infrared Camera
Optris Precision Line PI Infrared Camera
SKU:PRE-c9fe1f
High-res Optris PI Infrared Camera for precise temp measurements. Compact design, wide temp range, ideal for various applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Optris Precision Line PI Infrared Camera
$1,899.99
Quantity: 1
Claim Your Seller Account
Optris Precision Line PI Infrared Camera
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Optris Precision Line PI Infrared Camera is a compact and high-resolution imaging solution designed for fast online inspections. With a Focal Plane Array detector and 382 x 288 px optical resolution, this camera offers precise temperature measurements ranging from 32 to 158 ºF. Equipped with a wide range of interfaces and accessories, it is suitable for diverse applications like component inspection, fire protection, and injection molding. This camera meets stringent industry standards for accuracy and durability, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Accessories Cooling Jacket Advanced
Part Number - ACPICJAFeatures:Operation at ambient temperatures up to 315 ºCAir/water cooling with integrated air purging and optional protective windowsModular concept for easy installation of different devices and opticsTrouble-free sensor disassembling on site with quick release chassisIntegration of additional components like PI NetBox, USB Server Gigabit 2.0 and Industrial Process Interface (PIF) in extended version
Accessories Industrial Process Interface Pif For Optris Pi Serie
Part Number - ACPIPIFMAFeatures:Industrial process interface for PI series with 3 analog/alarm outputs, 2 analog inputs, 1 digital input, 3 alarm relays500 V ACRMS isolation voltage between camera and processSeparate fail-safe relay outputPI hardware including all cable connections and PIX Connect software are permanently observed during operation
Accessories Laminar Air Purge
Part Number - ACCJAAPLSFeatures:Protection for rugged environmentsAir and water cooling, flexible laminar air stream for protection from dirt and dustEasy maintenance due to folding mechanismFocusable from the outside once installedProtection window for mechanical protection integratedAlso available as line scanner version
Accessories Outdoor Protective Housing For Infrared Cameras
Part Number - ACPIOPHFeatures:Environmental rating IP 66Additional air purge collar allows for a continuous operation in dusty and humid conditionsHeating element and built-in fan enable for a 24/7 operation from -40 ºC to 50 ºCInstallation of USB Server Gigabit 2.0 and industrial process interface possible for integration into control systems over large outdoor distances
Accessories Pi Netbox
Part Number - OPTPINBW732GFeatures:Miniature PC as an add-on to the PI series for stand-alone system or for cable extension via GigEIntegrated hardware and software watchdogInstallation of additional user software possibleStatus LEDsProcessor: Intel® E3845 Quad Core / 1.91 GHz, 16 GB SSD, 2 GB RAMConnections: 2x USB 2.0, 1x USB 3.0, 1x Mini USB 2.0, Micro HDMI, Ethernet (Gigabit Ethernet), Micro SDHC/SDXC cardWide supply voltage range (8 - 48 V DC) or Power over Ethernet (PoE)Can be integrated into CoolingJacket Advanced
Accessories Universal Serial Bus Usb Server Gigabit 20 For Optri
Part Number - ACPIUSBSGBFeatures:Fully USB 2.0 compatible, Data rates: 1.5/12/480 mbps, USB transfer mode: IsochronousNetwork connection via Gigabit EthernetFor optris PI series and Xi 400 as well as CTvideo/Csvideo seriesFull TCP/IP support incl. routing and DNSTwo independent USB portsSupply from PoE or external power supply with 24 - 48 V DCGalvanic isolation 500 VRMS (network connection)Remotely configurable via Web Based ManagementProven technology from Wiesemann & Theis
Specifications Ambient Temperature Tamb
0 to 70 ºC | 32 to 158 ºF
Specifications Applications
Component Inspection of Circuit Boards | Infrared Technology for Fire Protection | Injection Molding | Workpiece Control During Drop Forging
Specifications Class
Ingress Protection (IP 67) (National Electrical Manufacturers Association (NEMA 4))
Specifications Detector
Focal Plane Array (FPA)
Specifications Fields Of View Fov Optics
18º x 14º (f = 20 mm) (0.79 in) | 29º x 22º (f = 12.7 mm) (0.5 in) | 53º x 38º (f = 7.7 mm) (0.30 in) | 80º x 54º (f = 5.7 mm) (0.22 in)
Specifications Frame Rate
80 Hz
Specifications Non Condensing Relative Humidity
10 to 95 %
Specifications Optical Resolution
382 x 288 px
Specifications Optional Process Interface Pif
1x Digital Input (Maximum 24 V) | 1x Fail-Safe Relay | 2 x 0 - 10 V Inputs | 3 x 0/4 - 20 mA Outputs | 3 x Relays (0 - 30 V/400 mA)
Specifications Personal Computers Pc Interfaces
Optional Universal Serial Bus (USB) to Gigabit Ethernet (GigE) Power Over Ethernet (PoE) | Universal Serial Bus (USB 2.0)
Specifications Power Supply
Via Universal Serial Bus (USB)
Specifications Shockvibration
International Electrotechnical Commission (IEC 60068-2)
Specifications Size
46 x 56 x 68 to 77 mm | 1.81 x 2.2 x 2.68 to 3.03 in
Specifications Spectral Range
7.9 µm
Specifications Standard Process Interface Pif
1x 0 - 10 V Input | 1x 0 - 10 V Output | 1x Digital Input (Maximum 24 V)
Specifications Storage Temperature
-40 to 85 ºC | -40 to 185 ºF
Specifications Switchable Frame Rate
0 to 27 Hz
Specifications System Accuracy At Ambient Temperature Tamb 23 5
±2 ºC or ±2%, Whichever is Greater
Specifications Temperature Ranges
150 to 900 ºC | 200 to 1500 ºC | 302 to 1652 ºF | 392 to 2732 ºF
Specifications Thermal Sensitivity Netd
150 mK
Specifications Thermal Sensitivity Netd With 18 Degree Fields Of
175 mK
Specifications Tripod Mount
1/4 - 20 Unified Coarse (UNC)
Specifications Uncooled Pitch Detector
17 µm
Specifications Weight Depending On Lens
237 to 251 g | 8.36 to 8.85 oz
Standard Scope Of Supply Standard Scope Of Supply
USB camera with 1 lensUSB cable (1 m (3.3 ft))Table tripodPIF cable with terminal block (1 m (3.3 ft))ManualSoftware package optris PIX ConnectRugged outdoor case
