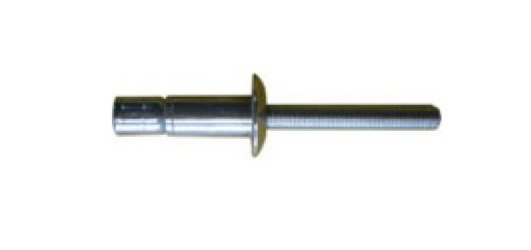

OR-Bolt 19.0mm Stainless Steel Protruding Head Rivet
OR-Bolt 19.0mm Stainless Steel Protruding Head Rivet
SKU:ORB-cdacf2
High-strength 19.0mm Stainless Steel Rivet for secure fastening in structural applications. Meets stringent procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
OR-Bolt 19.0mm Stainless Steel Protruding Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
OR-Bolt 19.0mm Stainless Steel Protruding Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The OR-Bolt 19.0mm Stainless Steel Protruding Head Rivet by Ornit is a top-tier fastening solution crafted from Austenitic Stainless Steel AISI 304, ensuring exceptional durability and corrosion resistance. With a head diameter of 13.0mm and mandrel diameter of 4.0mm, this rivet offers superior grip range (2.0mm to 15.9mm) and nominal shear force of 1193kgf, meeting the rigorous standards of government and institutional procurements. Perfect for structural applications that demand reliability and longevity.
Product Specifications
Nominal Dimensions Body Length
19.0 mm | 0.748 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 7.0 mm | 0.260 to 0.276 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.6 mm | 0.102 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1193 kgf | 1630 lbf
Nominal Forces Nominal Tensile Force
1060 kgf | 2335 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
