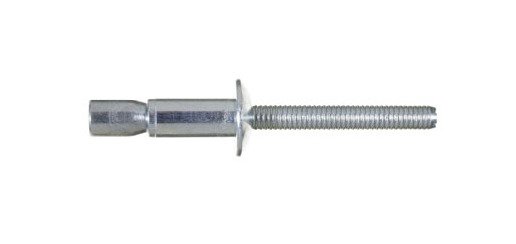

OR-Bolt Aluminum 14.0mm Protruding Head Rivet
OR-Bolt Aluminum 14.0mm Protruding Head Rivet
SKU:ORB-0dffeb
High-quality OR-Bolt Aluminum 14.0mm rivet for reliable strength and durability. Compliant with federal standards.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
OR-Bolt Aluminum 14.0mm Protruding Head Rivet
$32.99
Quantity: 1
Claim Your Seller Account
OR-Bolt Aluminum 14.0mm Protruding Head Rivet
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The OR-Bolt Aluminum 14.0mm Protruding Head Rivet, crafted from high-quality Aluminum Alloy, offers exceptional strength and durability. With a nominal shear force of 610 kgf and a tensile force of 430 kgf, this rivet ensures reliable performance. Its precise dimensions and natural finish make it ideal for a wide range of applications. Compliant with federal procurement standards and industry-specific certifications, this rivet is a top choice for both commercial and institutional projects.
Product Specifications
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.6 mm | 0.102 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
610 kgf | 1342 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 946 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
