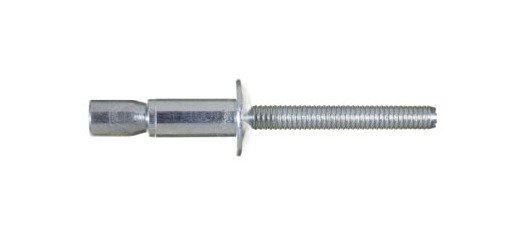

OR-Bolt Aluminum Protruding Head Rivet 19.0mm
OR-Bolt Aluminum Protruding Head Rivet 19.0mm
SKU:ORB-4e713e
Durable Aluminum Protruding Head Rivet with strong Shear and Tensile Forces, ideal for diverse applications. Meets Federal/DoD standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
OR-Bolt Aluminum Protruding Head Rivet 19.0mm
$24.99
Quantity: 1
Claim Your Seller Account
OR-Bolt Aluminum Protruding Head Rivet 19.0mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The OR-Bolt Aluminum Protruding Head Rivet features a durable Aluminum Alloy body, natural finish, and Aluminum Alloy 7075 Mandrel. With nominal Shear Force of 610 kgf and Tensile Force of 430 kgf, it provides strong and reliable fastening solutions. The 19.0mm Body Length and adjustable Grip Range make it versatile for various applications. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors.
Product Specifications
Nominal Dimensions Body Length
19.0 mm | 0.748 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.6 mm | 0.102 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
610 kgf | 1342 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 946 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
