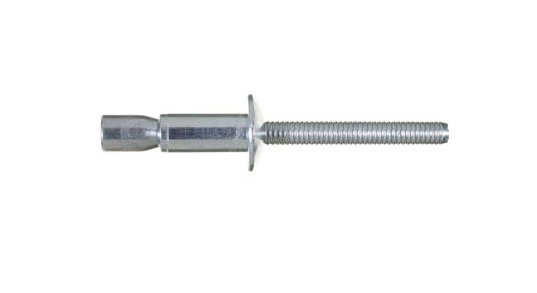

OR-Bolt Steel Protruding Head Rivet - 10.5mm Body Length

Name: OR-Bolt Steel Protruding Head Rivet - 10.5mm Body Length
Brand: Ornit USA
SKU: ORB-263041
Price: 45.99 USD
Availability: OutOfStock

SKU:ORB-263041

High-quality OR-Bolt Steel Rivet for secure fastening. Compliant with federal standards. Nominal shear force: 653kgf. Nominal tensile force: 520kgf.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

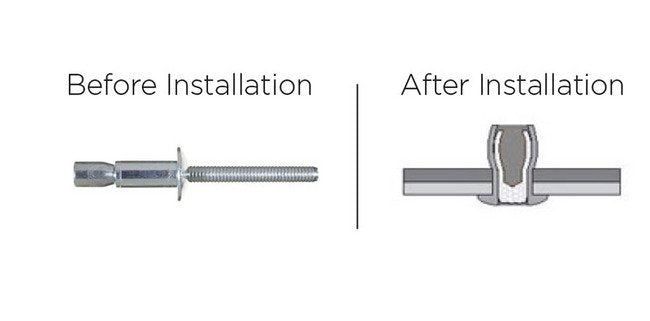

The OR-Bolt Steel Protruding Head Rivet features a low carbon steel body with a zinc-plated chromium VI-free finish for corrosion resistance. The medium carbon steel mandrel ensures strength. With a 10.5mm body length and a grip range of 1.6mm to 6.9mm, this rivet provides reliable fastening. Meeting stringent federal procurement standards, this rivet offers a nominal shear force of 653kgf and a nominal tensile force of 520kgf, making it ideal for industrial and institutional applications.

Product Specifications

Nominal Dimensions Body Length

10.5 mm | 0.413 in

Nominal Dimensions Diameter

4.8 mm | 3/16 in

Nominal Dimensions Drillhole Size

4.9 to 5.1 mm | 0.192 to 0.200 in

Nominal Dimensions Head Diameter

9.8 mm | 0.386 in

Nominal Dimensions Head Thickness

2.1 mm | 0.083 in

Nominal Dimensions Mandrel Diameter

3.0 mm | 0.118 in

Nominal Dimensions Maximum Grip Range

6.9 mm | 0.272 in

Nominal Dimensions Minimum Grip Range

1.6 mm | 0.063 in

Nominal Forces Nominal Shear Force

653 kgf | 1437 lbf

Nominal Forces Nominal Tensile Force

520 kgf | 1144 lbf

Technical Specs Body Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Body Material

Low Carbon Steel

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

4000

Technical Specs Head Style

Protruding

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Medium Carbon Steel

OR-Bolt Steel Protruding Head Rivet - 10.5mm Body Length
