OR-Bolt Steel Protruding Head Rivet 14.5mm Body Length
OR-Bolt Steel Protruding Head Rivet 14.5mm Body Length
SKU:ORB-05f40d
High-performance OR-Bolt Steel Protruding Head Rivet for secure and durable fastening solutions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
OR-Bolt Steel Protruding Head Rivet 14.5mm Body Length
$49.99
Quantity: 1
Claim Your Seller Account
OR-Bolt Steel Protruding Head Rivet 14.5mm Body Length
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

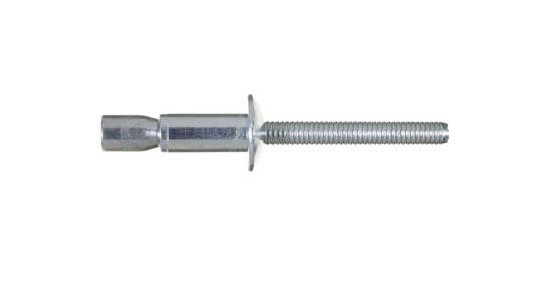

The OR-Bolt Steel Protruding Head Rivet with a 14.5mm body length is a reliable fastening solution that meets stringent institutional procurement standards. Manufactured by Ornit, these rivets are made of low carbon steel with a zinc-plated chromium VI-free finish for enhanced durability. With a nominally tested shear force of 653 kgf and a tensile force of 520 kgf, these rivets ensure secure and long-lasting connections. Ideal for a wide range of applications requiring precision and strength.
Product Specifications
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
653 kgf | 1437 lbf
Nominal Forces Nominal Tensile Force
520 kgf | 1144 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
