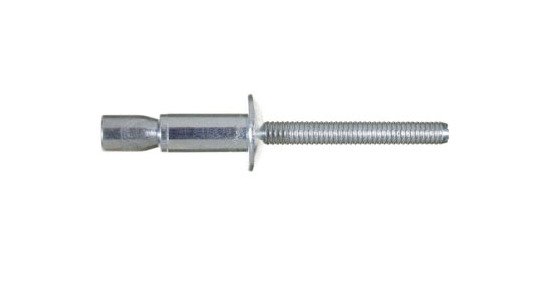

OR-Bolt Steel Protruding Head Rivet - 19.0mm Body Length, Zinc Plated Chromium VI Free

Name: OR-Bolt Steel Protruding Head Rivet - 19.0mm Body Length, Zinc Plated Chromium VI Free
Brand: Ornit USA
SKU: ORB-0b68ef
Price: 32.99 USD
Availability: OutOfStock

SKU:ORB-0b68ef

OR-Bolt Steel Protruding Head Rivet: Superior strength, durability, and corrosion resistance for industrial applications.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The OR-Bolt Steel Protruding Head Rivet is a robust fastening solution designed for industrial applications. With a low carbon steel body and medium carbon steel mandrel, this rivet offers superior strength and durability. The zinc plated chromium VI free finish ensures corrosion resistance, making it ideal for outdoor and harsh environments. Meet your fastening needs with precision and reliability using Ornit's quality rivets.

Product Specifications

Nominal Dimensions Body Length

19.0 mm | 0.748 in

Nominal Dimensions Diameter

6.5 mm | 1/4 in

Nominal Dimensions Drillhole Size

6.62 to 6.9 mm | 0.260 to 0.271 in

Nominal Dimensions Head Diameter

13.0 mm | 0.512 in

Nominal Dimensions Head Thickness

2.6 mm | 0.102 in

Nominal Dimensions Mandrel Diameter

4.0 mm | 0.157 in

Nominal Dimensions Maximum Grip Range

15.9 mm | 0.626 in

Nominal Dimensions Minimum Grip Range

8.9 mm | 0.350 in

Nominal Forces Nominal Shear Force

1250 kgf | 2750 lbf

Nominal Forces Nominal Tensile Force

1000 kgf | 2200 lbf

Technical Specs Body Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Body Material

Low Carbon Steel

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

1500

Technical Specs Head Style

Protruding

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Medium Carbon Steel
