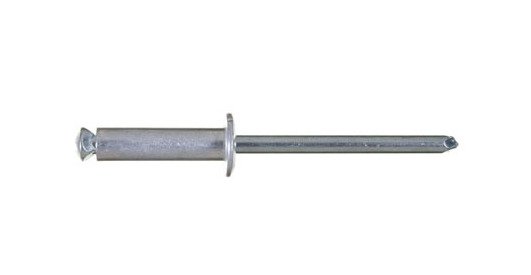

OR-Peel 38.0mm Self Piercing Rivets
OR-Peel 38.0mm Self Piercing Rivets
SKU:ORP-b51b7f
High-quality OR-Peel 38.0mm Self Piercing Rivets for reliable and durable fastening in a wide range of applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
OR-Peel 38.0mm Self Piercing Rivets
$49.99
Quantity: 1
Claim Your Seller Account
OR-Peel 38.0mm Self Piercing Rivets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The OR-Peel 38.0mm Self Piercing Rivets are designed for durability and precision. Manufactured with high-quality Aluminum Alloy (ALmg 3.0/5.0) bodies and Carbon Steel mandrels finished with Zinc Coated Chromium (Cr) VI Free, these dome head rivets ensure reliable fastening. With a nominal shear force of 250 kgf and nominal tensile force of 320 kgf, they meet stringent industry standards for strength and performance. Ideal for a wide range of applications, these rivets offer a grip range from 9.0mm to 23.0mm, making them versatile and practical for various projects.
Product Specifications
Nominal Dimensions Body Length
38.0 mm | 1.5 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
23.0 mm | 0.906 in
Nominal Dimensions Minimum Grip Range
9.0 mm | 0.354 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
