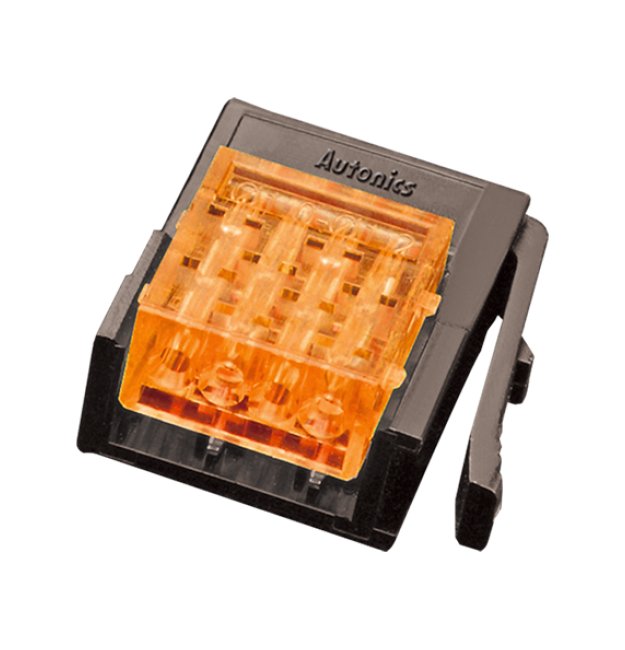

Orange 4-Pin Wire Mount Plug Connector
Orange 4-Pin Wire Mount Plug Connector
SKU:PRO-b7f081
High-quality Orange 4-Pin Wire Mount Plug Connector for secure and efficient electrical connections. Suitable for 26-24 AWG wires.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Orange 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Orange 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Orange 4-Pin Wire Mount Plug Connector is a high-quality sensor connector designed for durability and reliability. With a maximum rated current of 3.0 A and a terminal material of C5210 with Gold plating, this connector ensures secure and efficient electrical connections. The body and case materials are made of Polycarbonate and ABS, meeting UL94V-0 standards for fire resistance. Suitable for wires ranging from 26-24 AWG and a cross-sectional area of 0.13 to 0.21 mm², this connector guarantees a reliable connection in various applications. Add this Orange Wire Mount Plug Connector to your connectivity arsenal for seamless integration and superior performance.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Orange
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Orange
Specifications Cover Diameter
1.2 to 1.6 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
