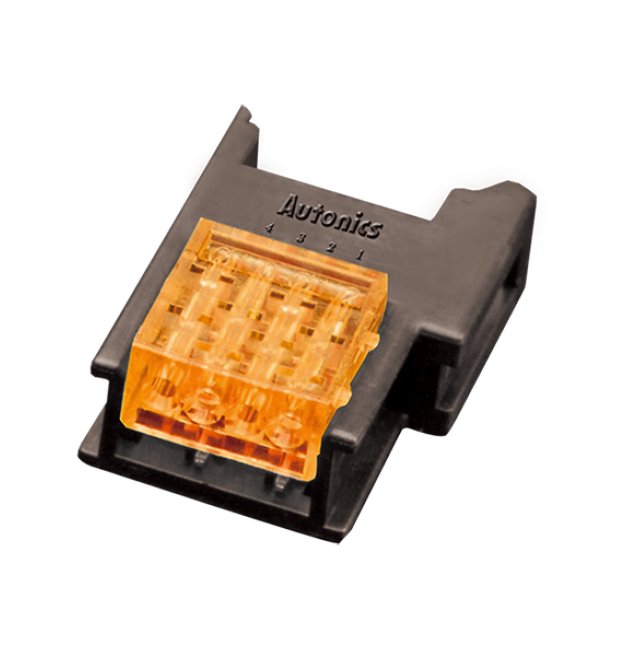

Orange 4-Pin Wire Mount Socket Connector
Orange 4-Pin Wire Mount Socket Connector
SKU:PRO-6e02da
High-quality Orange 4-Pin Wire Mount Socket Connector for secure and reliable connections in connectivity applications.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Orange 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Claim Your Seller Account
Orange 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Orange 4-Pin Wire Mount Socket Connector is a high-quality solution for secure and reliable connections. With a maximum rated current of 3.0 A and terminal material made of C5210 gold, this connector ensures durability and efficient performance. Crafted from Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) and Polycarbonate materials, this sensor connector meets stringent industry standards for safety and reliability. Compatible with wire sizes ranging from 26-24 AWG, this connector offers a nominal cross-section area of 0.13 to 0.21 mm², making it ideal for various connectivity applications.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Orange
Specifications Connector Type
Wire Mount Socket
Specifications Cover Color
Orange
Specifications Cover Diameter
1.2 to 1.6 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
