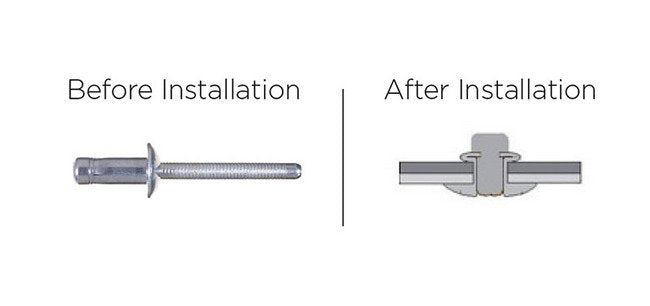

  • Orlock™ 4.8mm x 9.0mm Steel Protruding Head Rivet - Image 2
1 2
Ornit USA →

Orlock™ 4.8mm x 9.0mm Steel Protruding Head Rivet

Orlock™ 4.8mm x 9.0mm Steel Protruding Head Rivet

ORL-4eebb5

Enhance fastening with Orlock™ 4.8mm Steel Protruding Head Rivet, offering top-notch security, durability, and vibration resistance.

$45.99
$45.99
Sale

Initiate Order

Orlock™ 4.8mm x 9.0mm Steel Protruding Head Rivet

Orlock™ 4.8mm x 9.0mm Steel Protruding Head Rivet

$45.99

Quantity: 1

Claim Your Seller Account

Orlock™ 4.8mm x 9.0mm Steel Protruding Head Rivet

Orlock™ 4.8mm x 9.0mm Steel Protruding Head Rivet

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your structural fastening with the Orlock™ 4.8mm Steel Protruding Head Rivet. Featuring a robust double-locking system and vibration-resistant joint, this rivet offers exceptional shear and tensile forces. Ideal for applications in seating, side frames, front frames, hinges, and more, it provides top-notch security and durability. Crafted from low carbon steel with chromium (Cr) VI free finishes, Orlock™ meets the highest quality standards for automotive and construction needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.Window FrameSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.
Nominal Dimensions Body Length
9.0 mm | 0.354 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.387 in
Nominal Dimensions Head Thickness
2.2 mm | 0.87 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
3.5 mm | 0.138 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
460 kgf | 1012 lbf
Nominal Forces Nominal Tensile Force
360 kgf | 792 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
