Orlock 6.4mm Steel Countersunk Head Rivet
Orlock 6.4mm Steel Countersunk Head Rivet
SKU:ORL-ceeba0
Premium 6.4mm Steel Countersunk Rivet for high-force applications. Double-locking system ensures safety & vibration resistance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Orlock 6.4mm Steel Countersunk Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Orlock 6.4mm Steel Countersunk Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

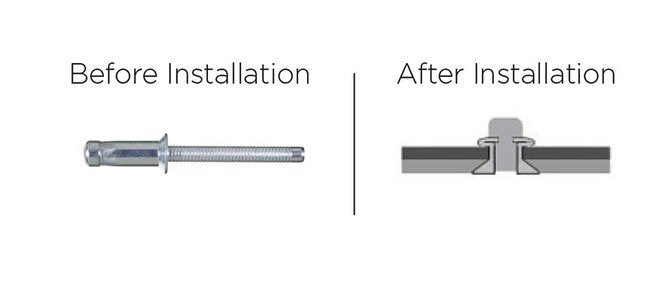

The Orlock 6.4mm Steel 100 Degree Countersunk Head Rivet is a structural fastener specifically designed for high shear and tensile forces applications. Made of low carbon steel with Zinc Plated Chromium VI Free Passivation finish, it ensures durability and corrosion resistance. With a double-locking system for enhanced security, this rivet provides a strong and vibration-resistant joint, making it ideal for securing seats, trailer frames, hinges, axes, and locking systems. With nominal shear force of 1050kgf and nominal tensile force of 560kgf, it guarantees reliability and safety in automotive applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock⢠with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.Automotive - SeatingThe Orlock⢠is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
23.5 mm | 0.925 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.260 to 0.268 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
17.8 mm | 0.701 in
Nominal Dimensions Minimum Grip Range
15.8 mm | 0.622 in
Nominal Forces Nominal Shear Force
1050 kgf | 2315 lbf
Nominal Forces Nominal Tensile Force
560 kgf | 1235 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
