Orlock Aluminum Protruding Head Rivet 9.8mm x 23.5mm

Name: Orlock Aluminum Protruding Head Rivet 9.8mm x 23.5mm
Brand: Ornit USA
SKU: ORL-b06ad6
Price: 29.99 USD
Availability: OutOfStock

SKU:ORL-b06ad6

Secure joints with ease using Orlock Aluminum Protruding Head Rivet, designed for high shear and tensile forces in various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

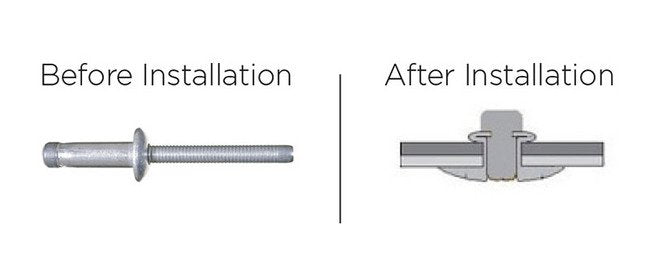

The Orlock Aluminum Protruding Head Rivet with 9.8mm diameter and 23.5mm body length is a versatile, high-performance structural fastener suitable for a wide range of joint applications. Engineered to deliver exceptional shear and tensile forces, this rivet ensures a secure and vibration-resistant joint, making it ideal for demanding environments where reliability is paramount. Crafted from high-quality aluminum alloy for durability, the Orlock rivet guarantees exceptional performance and longevity.

Product Specifications

Nominal Dimensions Body Length

23.5 mm | 0.925 in

Nominal Dimensions Diameter

9.8 mm | 3/8 in

Nominal Dimensions Drillhole Size

10.0 to 10.4 mm | 0.394 to 0.409 in

Nominal Dimensions Head Diameter

19.5 mm | 0.768 in

Nominal Dimensions Head Thickness

4.2 mm | 0.165 in

Nominal Dimensions Mandrel Diameter

6.00 mm | 0.236 in

Nominal Dimensions Maximum Grip Range

15.0 mm | 0.591 in

Nominal Dimensions Minimum Grip Range

12.0 mm | 0.472 in

Nominal Forces Nominal Shear Force

900 kgf | 1980 lbf

Nominal Forces Nominal Tensile Force

1320 kgf | 600 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (ALmg 2.5)

Technical Specs Brands

Orlockâ¢ | Ornit

Technical Specs Carton Quantity

500

Technical Specs Head Style

Protruding

Technical Specs Mandrel Finish

Natural

Technical Specs Mandrel Material

Aluminum Alloy 7075 or Equivalent
