Orlock Steel Countersunk Head Rivet, 6.4mm x 15.5mm
Orlock Steel Countersunk Head Rivet, 6.4mm x 15.5mm
SKU:ORL-08f1c2
Versatile Orlock Steel Rivet, 100 Degree Countersunk Head, 6.4mm x 15.5mm, High Shear & Tensile Forces, Vibration-Resistant, Automotive-Grade
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Orlock Steel Countersunk Head Rivet, 6.4mm x 15.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Orlock Steel Countersunk Head Rivet, 6.4mm x 15.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

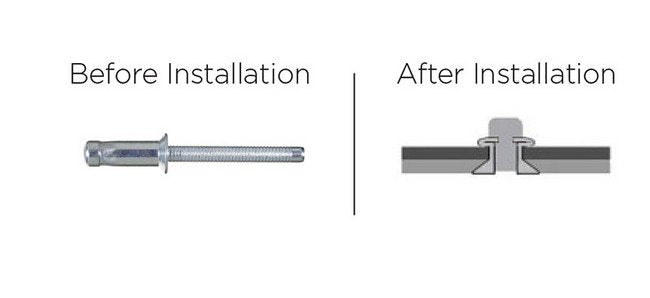

The Orlock Steel 100 Degree Countersunk Head Rivet is a versatile and reliable fastening solution suitable for various applications, including securing seats, trailer frames, hinges, and more. With its double-locking system, this rivet offers exceptional shear and tensile forces, ensuring a strong and vibration-resistant joint. Made of low carbon steel with Zinc Plated Chromium VI Free Passivation finish, it meets high-quality standards and provides peace of mind in automotive applications. With a nominal shear force of 950 kgf and a tensile force of 560 kgf, this rivet ensures durable and secure installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock⢠with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.Automotive - SeatingThe Orlock⢠is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
15.5 mm | 0.610 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.260 to 0.268 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
9.8 mm | 0.386 in
Nominal Dimensions Minimum Grip Range
7.8 mm | 0.307 in
Nominal Forces Nominal Shear Force
950 kgf | 2095 lbf
Nominal Forces Nominal Tensile Force
560 kgf | 1235 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
