Orlock Steel Large Head Rivet
Orlock Steel Large Head Rivet
SKU:ORL-750c42
Enhance your structural assemblies with Orlock Steel Large Head Rivet – superior strength, secure fastening, and vibration resistance in one rivet.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Orlock Steel Large Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Orlock Steel Large Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

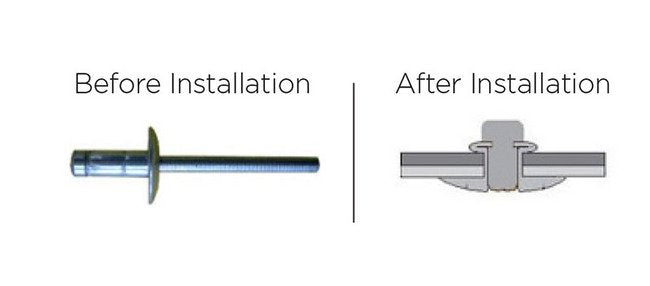

The Orlock Steel Large Head Rivet is a top choice for structural fastening needs in various applications, from automotive steering mechanisms to solar frames. With a double-locking system ensuring superior shear and tensile forces, this rivet offers exceptional strength and vibration resistance. Made of low carbon steel with a zinc-plated chromium finish, it meets stringent durability standards for lasting security. Ideal for seating, side frames, front frames, and more, the Orlock rivet provides peace of mind and reliability in critical assemblies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock⢠with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock⢠is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Applications Renewable Energy Application
Solar FramesThe Orlock⢠Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
24.5 mm | 0.964 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
16.3 mm | 0.642 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
18.8 mm | 0.740 in
Nominal Dimensions Minimum Grip Range
16.8 mm | 0.661 in
Nominal Forces Nominal Shear Force
1140 kgf | 2508 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
