Orlock Steel Large Head Rivet - 6.4mm x 16.5mm
Orlock Steel Large Head Rivet - 6.4mm x 16.5mm
SKU:ORL-0e21df
High-strength 6.4mm steel rivet with double-locking system for secure joints in automotive applications. Low carbon steel with zinc-plated chromium VI free finish.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Orlock Steel Large Head Rivet - 6.4mm x 16.5mm
$45.99
Quantity: 1
Claim Your Seller Account
Orlock Steel Large Head Rivet - 6.4mm x 16.5mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

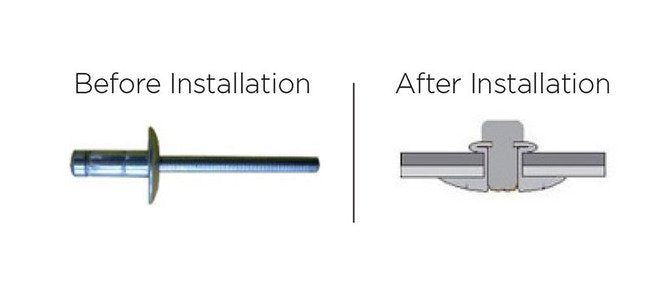

The Orlock Steel Large Head Rivet is a structural fastener with exceptional shear and tensile strength, featuring a double-locking system for secure joints. Ideal for automotive applications like steering wheel mechanisms and seating. Made of low carbon steel with zinc-plated chromium VI free finish, it meets rigorous safety and quality standards, providing peace of mind to users worldwide.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock⢠with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock⢠is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Applications Renewable Energy Application
Solar FramesThe Orlock⢠Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
16.5 mm | 0.650 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
16.3 mm | 0.642 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
10.8 mm | 0.425 in
Nominal Dimensions Minimum Grip Range
8.8 mm | 0.346 in
Nominal Forces Nominal Shear Force
1140 kgf | 2508 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
