Orlock Steel Protruding Head Rivet, 9.8mm x 23.5mm
Orlock Steel Protruding Head Rivet, 9.8mm x 23.5mm
SKU:ORL-3dab45
Achieve secure joints with Orlock™ Steel Protruding Head Rivet - ideal for industrial applications. High shear & tensile forces, vibration-resistant, tested for rail transport.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Orlock Steel Protruding Head Rivet, 9.8mm x 23.5mm
$59.99
Quantity: 1
Claim Your Seller Account
Orlock Steel Protruding Head Rivet, 9.8mm x 23.5mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

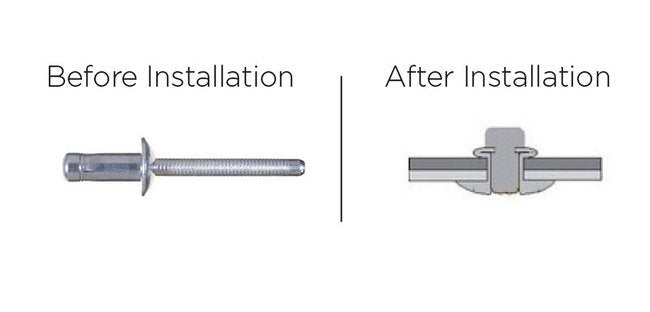

Upgrade your industrial projects with the Orlock™ Steel Protruding Head Rivet offering high shear and tensile forces. Featuring a double locking system for secure, vibration-resistant joints, this rivet is crafted from low carbon steel with a zinc-plated chromium finish. With a nominal shear force of 2600 kgf and tensile force of 1300 kgf, this rivet is ideal for rail transport applications such as trains, surpassing industry standards for durability and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
Trains - This extra-large diameter, Orlockâ¢, structural rivet provides the perfect solution for train assembly lines. The rivet provides a highly secure, vibration-resistance joint and is the ideal alternative to nuts, bolts and screws.
Nominal Dimensions Body Length
23.5 mm | 0.925 in
Nominal Dimensions Diameter
9.8 mm | 3/8 in
Nominal Dimensions Drillhole Size
10.0 to 10.4 mm | 0.394 to 0.409 in
Nominal Dimensions Head Diameter
19.5 mm | 0.768 in
Nominal Dimensions Head Thickness
4.2 mm | 0.165 in
Nominal Dimensions Mandrel Diameter
6.00 mm | 0.236 in
Nominal Dimensions Maximum Grip Range
15.0 mm | 0.591 in
Nominal Dimensions Minimum Grip Range
12.0 mm | 12.0 in
Nominal Forces Nominal Shear Force
2600 kgf | 5720 lbf
Nominal Forces Nominal Tensile Force
1300 kgf | 2860 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
