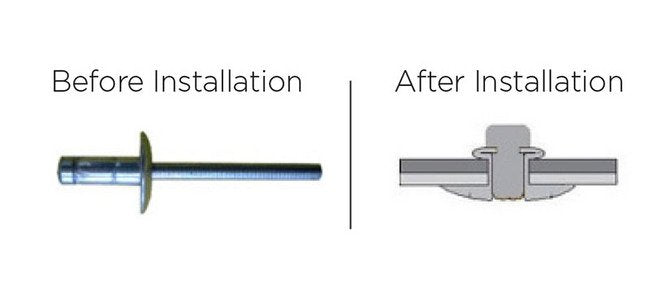

  • Orlock X Large Head Rivet, 6.4mm Diameter - Image 2
1 2
Ornit USA →

Orlock X Large Head Rivet, 6.4mm Diameter

Orlock X Large Head Rivet, 6.4mm Diameter

ORL-b4da33

Premium Orlock X Large Head Rivet for high-stress applications. Low carbon steel, zinc-plated chromium finish, double-locking system.

$56.99
$56.99
Sale

Initiate Order

Orlock X Large Head Rivet, 6.4mm Diameter

Orlock X Large Head Rivet, 6.4mm Diameter

$56.99

Quantity: 1

Claim Your Seller Account

Orlock X Large Head Rivet, 6.4mm Diameter

Orlock X Large Head Rivet, 6.4mm Diameter

$56.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock X Large Head Rivet is a premium structural fastener designed for high-stress applications. Made of low carbon steel with a zinc-plated chromium finish, this rivet features a double-locking system for superior shear and tensile forces. With a body length of 26.5mm and exceptional grip range, it ensures a strong, vibration-resistant joint. Ideal for securing seats, frames, hinges, and more, this rivet provides unmatched reliability and security.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
26.5 mm | 1.043 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
19.0 mm | 0.748 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
20.8 mm | 0.819 in
Nominal Dimensions Minimum Grip Range
18.8 mm | 0.740 in
Nominal Forces Nominal Shear Force
1140 kgf | 2508 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
