Orlock X Large Head Rivet, 6.4mm x 12.5mm

Orlock X Large Head Rivet, 6.4mm x 12.5mm

ORL-6ddfd4

Premium Orlock™ X Large Head Rivet for secure and strong fastening in automotive applications and beyond. Superior strength, vibration resistance, and peace of mind.

$29.99
$29.99
Sale

Initiate Order

Orlock X Large Head Rivet, 6.4mm x 12.5mm

Orlock X Large Head Rivet, 6.4mm x 12.5mm

$29.99

Quantity: 1

Claim Your Seller Account

Orlock X Large Head Rivet, 6.4mm x 12.5mm

Orlock X Large Head Rivet, 6.4mm x 12.5mm

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

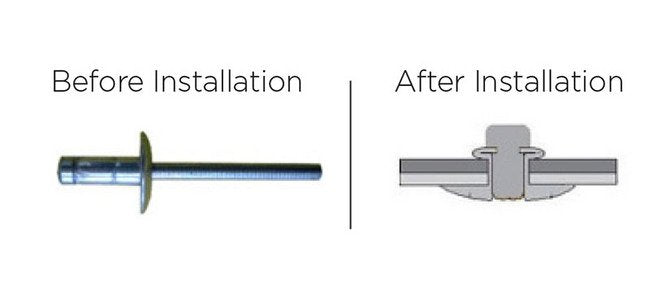

The Orlock™ Steel X Large Head Rivet is a premium structural fastener designed for superior strength and vibration resistance. With a double-locking system, this rivet securely supports seats, trailer frames, hinges, axes, and more. Crafted from low carbon steel with a zinc-plated chromium finish, it offers exceptional shear and tensile forces. Ideal for automotive applications like steering wheel mechanisms, the Orlock™ ensures safety and peace of mind for drivers worldwide.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
12.5 mm | 0.492 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
19.0 mm | 0.748 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
6.8 mm | 0.268 in
Nominal Dimensions Minimum Grip Range
4.8 mm | 0.189 in
Nominal Forces Nominal Shear Force
1040 kgf | 2288 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
